INT LAMP
DIAGNOSIS SYSTEM (BCM)
WORK SUPPORT
|
Service item |
Setting item |
Setting |
|
|
SET I/L D-UNLCK INTCON |
ON* |
With the interior room lamp timer function |
|
|
OFF |
Without the interior room lamp timer function |
||
|

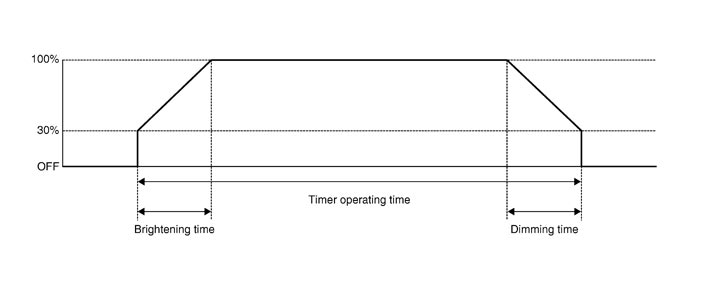

ROOM LAMP TIMER SET |
MODE 2 |
7.5 sec. |
Sets the interior room lamp ON time. (Timer operating time) |
|
MODE 3* |
15 sec. |
||
|
MODE 4 |
30 sec. |
||
|
ROOM LAMP ON TIME SET |
MODE 1 |
0.5 sec. |
Sets the interior room lamp gradual brightening time. |
|
MODE 2* |
1 sec. |
||
|
MODE 3 |
2 sec. |
||
|
MODE 4 |
3 sec. |
||
|
MODE 5 |
0 sec. |
||
|
ROOM LAMP OFF TIME SET |
MODE 1 |
0.5 sec. |
Sets the interior room lamp gradual dimming time. |
|
MODE 2 |
1 sec. |
||
|
MODE 3 |
2 sec. |
||
|
MODE 4* |
3 sec. |
||
|
R LAMP TIMER LOGIC SET |
MODE 1* |
Interior room lamp timer activates with synchronizing all doors. |
|
|
MODE 2 |
Interior room lamp timer activates with synchronizing the driver door only. |
||
DATA MONITOR|
Monitor item [Unit] |
Description |
|
REQ SW-DR [On/Off] |
The switch status input from request switch (driver side) |
|
REQ SW-AS [On/Off] |
The switch status input from front request switch (passenger side) |
|
REQ SW-RR [On/Off] |
NOTE：
The item is indicated, but not monitored.
|
|
REQ SW-RL [On/Off] |
NOTE：
The item is indicated, but not monitored.
|
|
PUSH SW [On/Off] |
The switch status input from push-button ignition switch |
|
ACC RLY-F/B [On/Off] |
NOTE：
The item is indicated, but not monitored.
|
|
KEY SW-SLOT [On/Off] |
Key switch status input from key slot |
|
UNLK SEN-DR [On/Off] |
Driver door unlock status input from unlock sensor |
|
DOOR SW-DR [On/Off] |
The switch status input from driver side door switch |
|
DOOR SW-AS [On/Off] |
The switch status input from passenger side door switch |
|
DOOR SW-RR [On/Off] |
NOTE：
The item is indicated, but not monitored.
|
|
DOOR SW- RL [On/Off] |
NOTE：
The item is indicated, but not monitored.
|
|
DOOR SW-BK [On/Off] |
NOTE：
The item is indicated, but not monitored.
|
|
CDL LOCK SW [On/Off] |
Lock switch status received from the door lock and unlock switch |
|
CDL UNLOCK SW [On/Off] |
Unlock switch status received from the door lock and unlock switch |
|
KEY CYL LK-SW [On/Off] |
NOTE：
The item is indicated, but not monitored.
|
|
KEY CYL UN-SW [On/Off] |
NOTE：
The item is indicated, but not monitored.
|
|
TRNK/HAT MNTR [On/Off] |
The switch status input from trunk room lamp switch |
|
RKE-LOCK [On/Off] |
Lock signal status received from remote keyless entry receiver |
|
RKE-UNLOCK [On/Off] |
Unlock signal status received from remote keyless entry receiver |
ACTIVE TEST|
Test item |
Operation |
Description |
|
INT LAMP |
On |
Outputs the interior room lamp control signal to turn map lamp ON (Map lamp switch is in DOOR position). |
|
Off |
Stops the interior room lamp control signal to turn map lamp OFF. |
|
|
STEP LAMP TEST |
On |
Outputs the step lamp control signal to turn step lamp ON. |
|
Off |
Stops the step lamp control signal to turn step lamp OFF. |
|
|
LUGGAGE LAMP TEST |
On |
Outputs the trunk room lamp control signal to turn the trunk room lamp ON. |
|
Off |
Stops the trunk room lamp control signal to turn the trunk room lamp OFF. |
