Nissan GT-R (R35) · Service Manual DRIVER CONTROLS

MAP LAMP

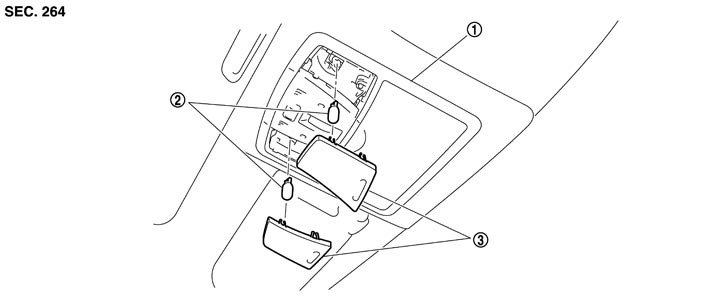

Exploded View




1.
 		Map lamp assembly
 		2.
 		Bulb
 		3.
 		Lens

Removal and Installation


Refer to Exploded View for the map lamp assembly installation/removal.

Replacement


■ CAUTION ■
  • Disconnect the battery negative terminal or remove the fuse.
  • Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
  • Never touch bulb by hand while it is lit or right after being turned off.
  • Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

 MAP LAMP BULB

    1.Insert any appropriate tool into the gap between the lens. Remove the lens.
    2.Remove the bulb.
