Nissan GT-R (R35) · Service Manual DRIVER CONTROLS

STEP LAMP

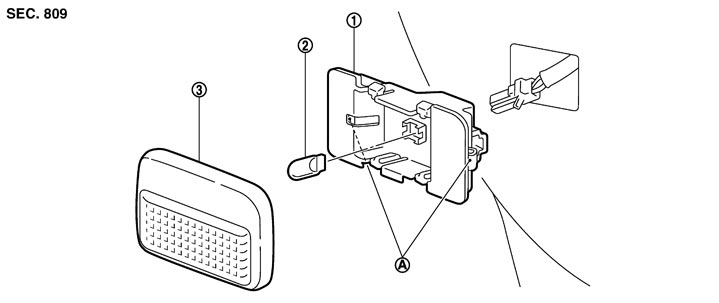

Exploded View




1.
 		Step lamp case
 		2.
 		Bulb
 		3.
 		Lens
A
 		Metal clip




Removal and Installation


■ CAUTION ■
 Disconnect the battery negative terminal or remove the fuse.

 REMOVAL

    1.Insert any appropriate tool into the gap between the step lamp and the door trim. Remove the step lamp.
    2.Disconnect the connector.

 INSTALLATION

Install in the reverse order of removal.

Replacement


■ CAUTION ■
  • Disconnect the battery negative terminal or remove the fuse.
  • Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
  • Never touch bulb by hand while it is lit or right after being turned off.
  • Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

 STEP LAMP BULB

    1.Remove the step lamp.
    2.Remove the lens.
    3.Remove the bulb.
