Nissan GT-R (R35) · Service Manual DRIVER CONTROLS

TRUNK ROOM LAMP

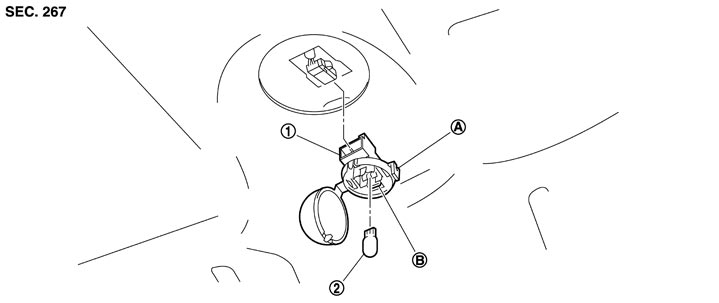

Exploded View




1.
 		Trunk room lamp
 		2.
 		Bulb

A
 		Pawl (for lens fixing)
 		B.
 		Pawl (for case installation)


Removal and Installation


■ CAUTION ■
 Disconnect the battery negative terminal or remove the fuse.

 REMOVAL

    1.Widen the pawl (A). Open the lens (1).
    2.Remove the bulb.
    3.Pressing the pawl (B) to the arrow direction (). Pull out the trunk room lamp.
    4.Disconnect the connector.
    5.Remove the trunk room lamp.

 INSTALLATION

Install in the reverse order of removal.

Replacement


■ CAUTION ■
  • Disconnect the battery negative terminal or remove the fuse.
  • Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
  • Never touch bulb by hand while it is lit or right after being turned off.
  • Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new one.

 TRUNK ROOM LAMP BULB

    1.Widen the lens pawl. Open the lens.
    2.Remove the bulb.
