YAW RATE/SIDE/DECEL G SENSOR
VDC/TCS/ABS

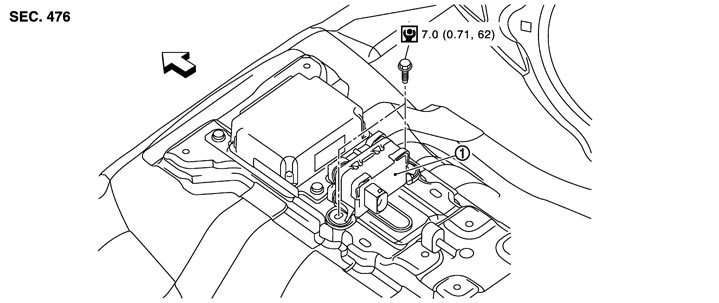

Exploded View
|
1. |
Yaw rate/side/decel G sensor |
|
|
|
|
 : Vehicle front |
|||||
|
Refer to GI section Components for symbol makes in the figure. |
|||||
Removal and Installation
REMOVAL■ CAUTION ■
Never drop or strike yaw rate/side/decel G sensor or use power tool etc., because yaw rate/side G sensor is sensitive to the impact.
- 1.Remove rear console. Refer to Exploded View.
- 2.Disconnect yaw rate/side/decel G sensor harness connector.
- 3.Remove mounting bolts. Remove yaw rate/side/decel G sensor.
INSTALLATIONNote the following items, and install in the reverse order of removal.
■ CAUTION ■
- Never drop or strike yaw rate/side/decel G sensor or use power tool etc., because yaw rate/side/decel G sensor is sensitive to the impact.
- After work, always calibrate of decel G sensor. Refer to Description (GT-R certified NISSAN dealer).
