STARTER MOTOR

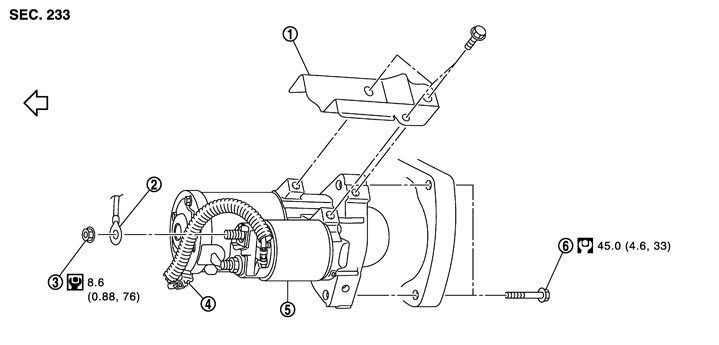

1.	Starter motor protector	2.	“B” terminal harness	3.	Starter motor“B” terminal nut
4.	“S” connector	5.	Starter motor	6.	Starter motor mounting bolt
: Engine front
Refer to Components for symbols in the figure.

Type: M000T22771

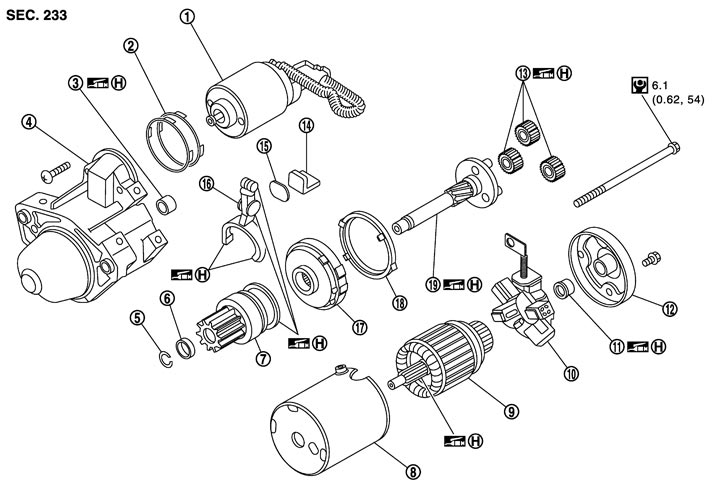

1.	Magnetic switch assembly	2.	Adjusting plate	3.	Metal FR
4.	Gear case assembly	5.	Stopper ring	6.	Stopper
7.	Pinion assembly	8.	Yoke assembly	9.	Armature assembly
10.	Brush holder assembly	11.	Metal RR	12.	Rear cover assembly
13.	Planetary gear	14.	Packing	15.	Plate
16.	Shift lever set	17.	Internal gear	18.	Packing
19.	Gear shaft
: High-temperature grease point
Refer to Components for symbols not described on the above.

1.Disconnect the battery cable from the negative terminal.

2.Remove engine rear undercover, using power tools.

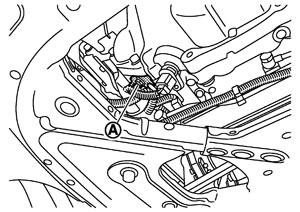

3.Remove harness bracket mounting bolts (A) and harness bracket.

4.Disconnect “S” connector.

5.Remove “B” terminal nut.

6.Remove starter motor mounting bolts.

7.Remove front drive shaft left side housing bolts. Refer to Exploded View (GT-R certified NISSAN dealer).

8.Move a front drive shaft left side forward keep a service area.

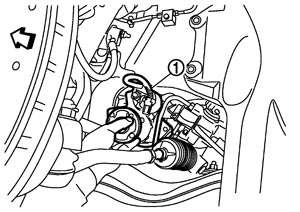

9.Remove starter motor (1) to left side from the vehicle.




: Vehicle front

Install in the reverse order of removal.

■ CAUTION ■

Be sure to tighten “B” terminal nut carefully.
