CHARGING SYSTEM

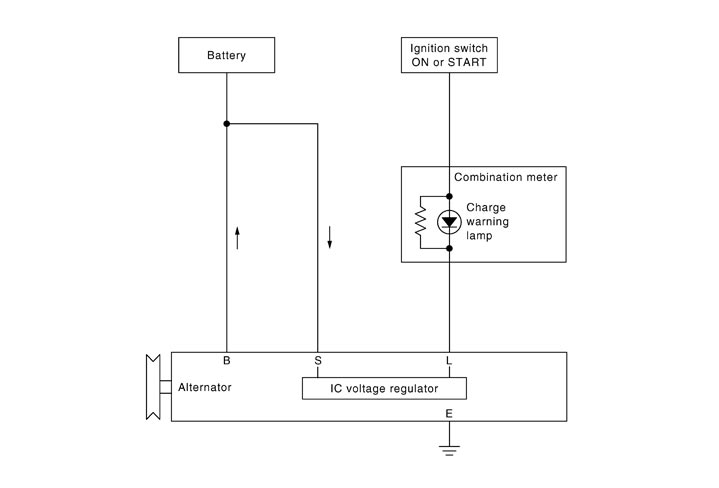

System Diagram
System Description
The alternator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged. The voltage output is controlled by the IC voltage regulator.

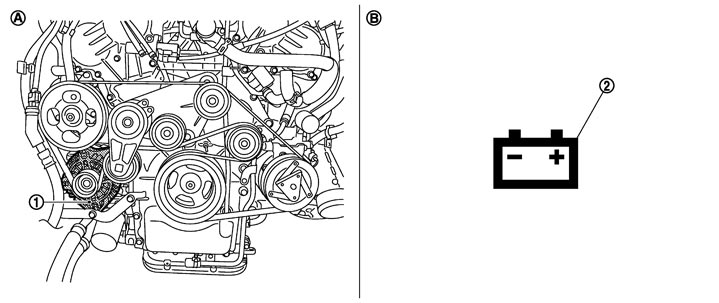

Component Parts Location
|
1. |
Alternator |
2. |
Charge warning lamp |
|
|
|
A. |
Cylinder block (bank 1) side |
B. |
Combination meter |
|
|
Component Description
|
Component part |
Description |
|
|
Alternator |
The alternator provides DC voltage to operate the vehicle electrical system and to keep the battery charged. |
|
|
Combination meter (Charge warning lamp) |
The IC voltage regulator warning function activates to illuminate the charge warning lamp, if any of the following symptoms occur while alternator is operating:
|
|
