CONSOLE POWER SOCKET
POWER SOCKET

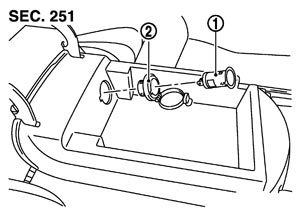

Exploded View
|
1 |
: Inner socket |
|
2 |
: Ring |
Removal and Installation

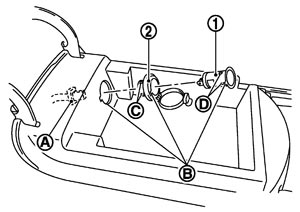

REMOVAL- 1.Remove center console assembly. Refer to Exploded View.
- 2.Disconnect power socket connector (A).
| B | : Cut out |
- 3.Pull out inner socket (1) by pushing the ring pawl (C) from the inner socket hole (square) (D).
- 4.Remove ring (2) from center console assembly while pressing pawls.
INSTALLATIONInstall in the reverse order of removal.
NOTE：
Align the cut outs of inner socket, ring, and center console assembly.
