Nissan GT-R (R35) · Service Manual ELECTRICAL & POWER CONTROL

HARNESS LAYOUT

POWER SUPPLY&GROUND CIRCUIT

How To Read Harness Layout





1
 		: Connector model
2
 		: Cavity
3
 		: Male (M) and female (F) terminals
4
 		: Connector color
5
 		: Special type

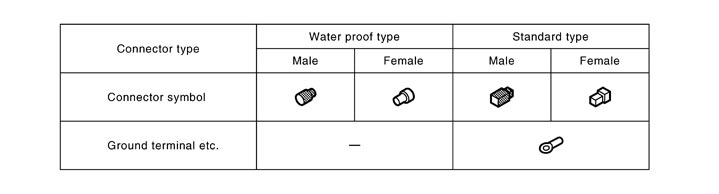

 CONNECTOR SYMBOL

Main symbols of connector (in Harness Layout) are indicated in the below.

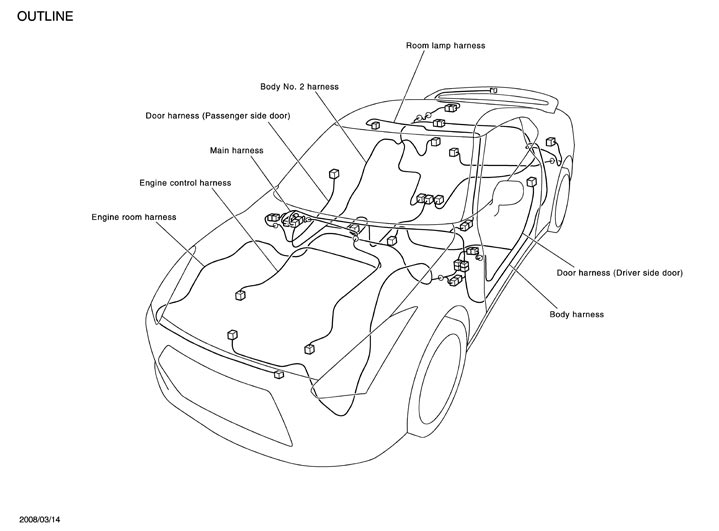

Outline

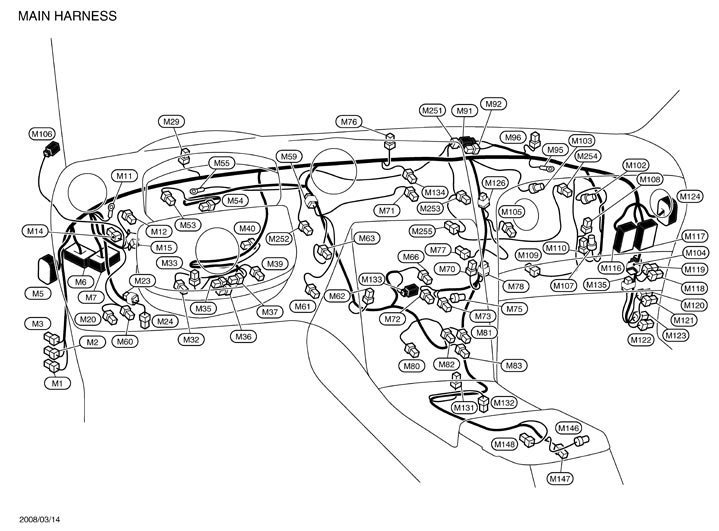

Main Harness

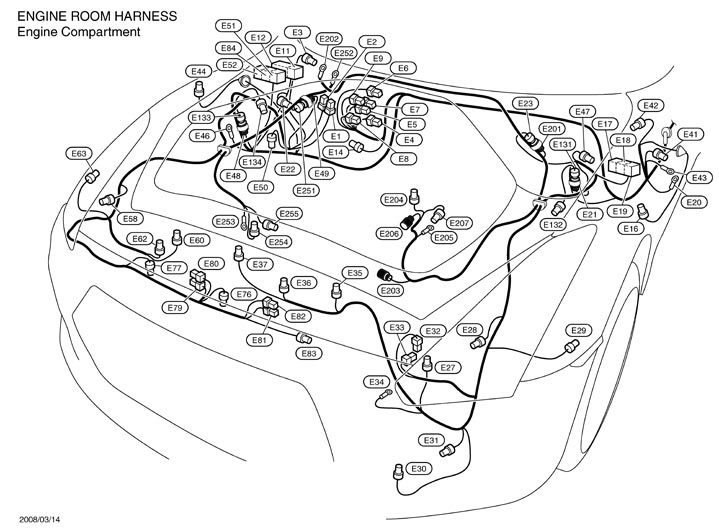

Engine Room Harness


 ENGINE COMPARTMENT

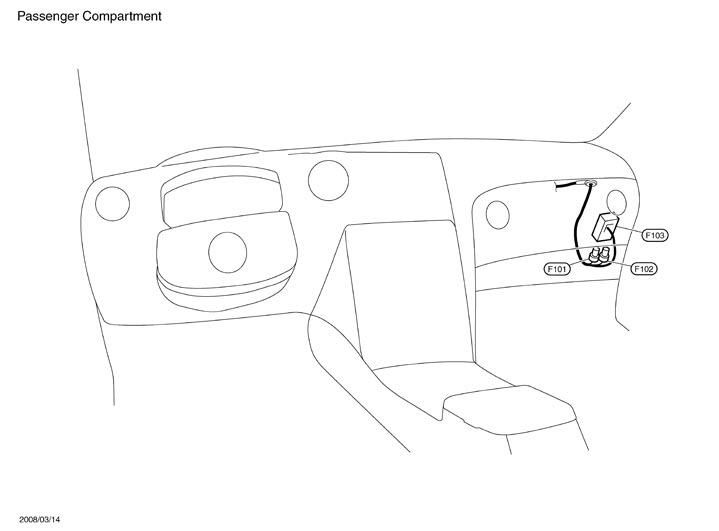

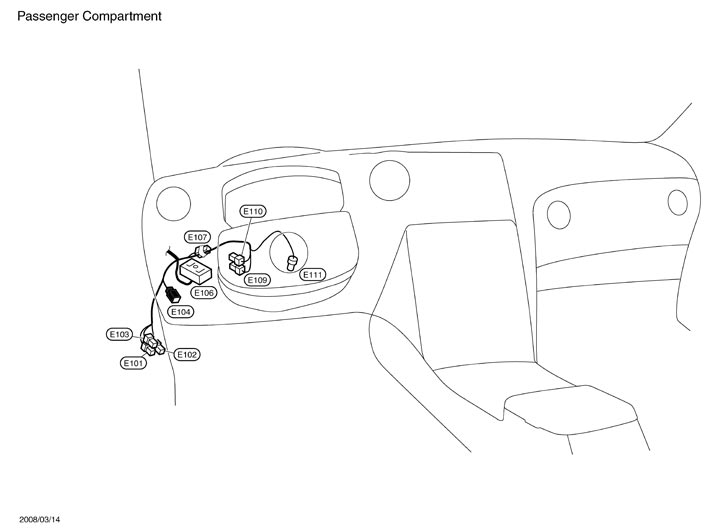

 PASSENGER COMPARTMENT

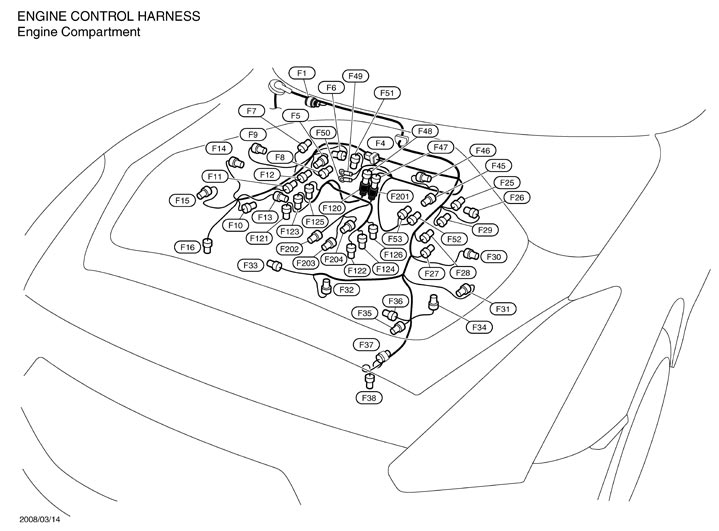

Engine Control Harness


 ENGINE COMPARTMENT

 PASSENGER COMPARTMENT

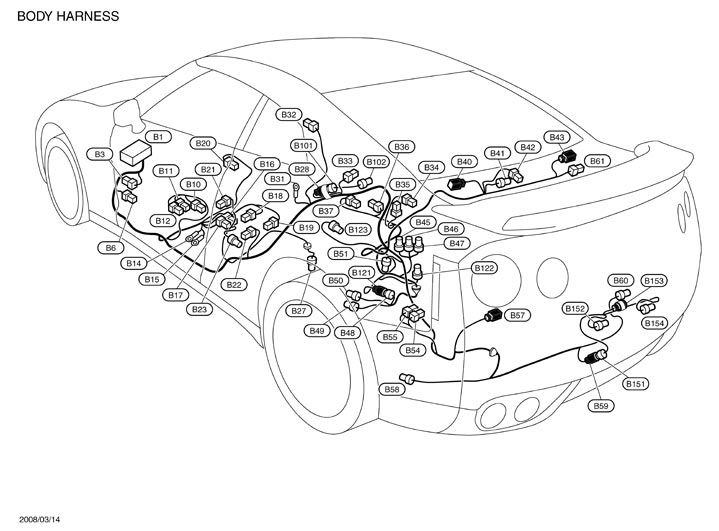

Body Harness

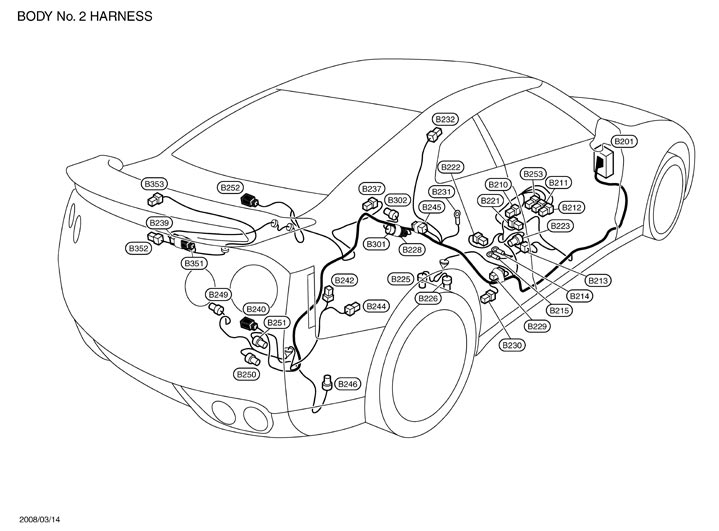

Body No. 2 Harness

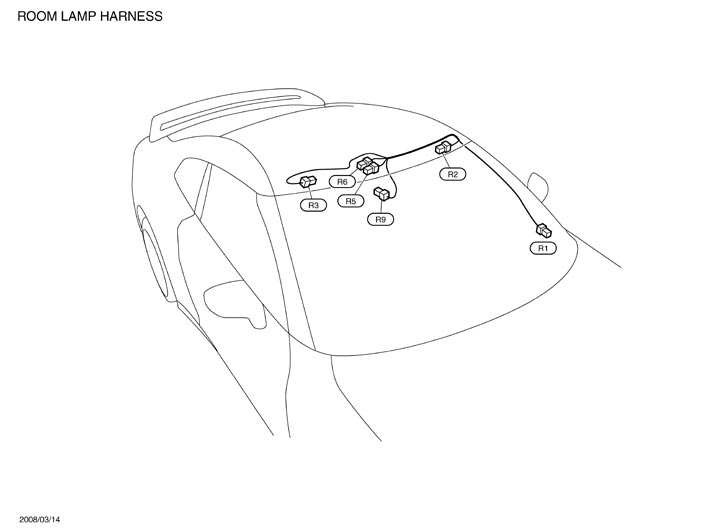

Room Lamp Harness

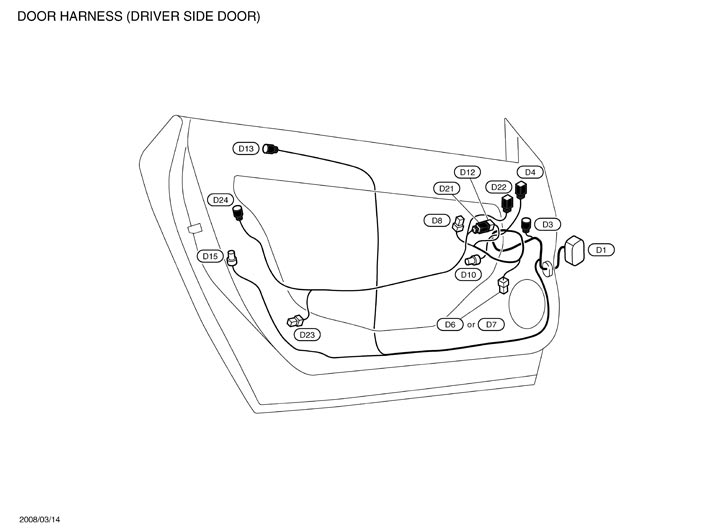

Door Harness (Driver Side Door)

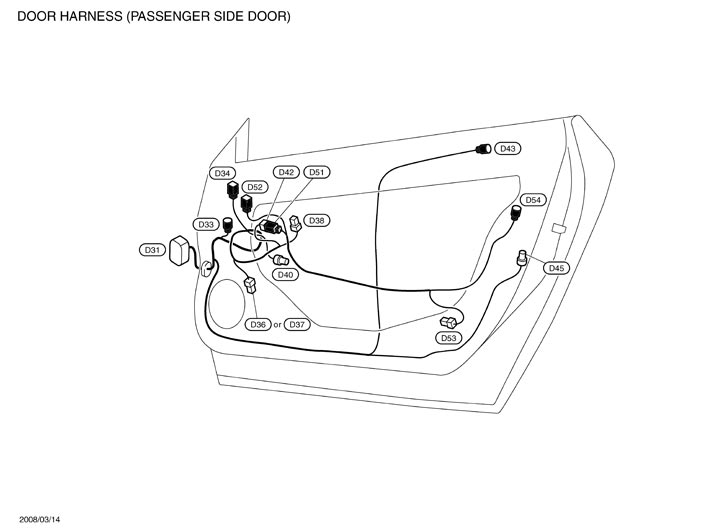

Door Harness (Passenger Side Door)
