BATTERY TERMINAL WITH FUSIBLE LINK
POWER SUPPLY&GROUND CIRCUIT

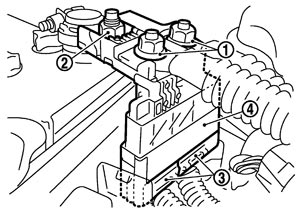

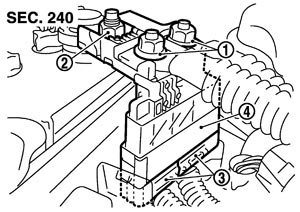

Exploded View
|
1 |
: Harness mounting nuts |
|
2 |
: Fusible link holder mounting nut |
|
3 |
: Harness connector |
|
4 |
: Battery terminal with fusible link |
Removal and Installation
REMOVAL- 1.Remove battery cover.
- 2.Disconnect the battery cable from the negative terminal.
- 3.Remove cover of battery positive terminal.
- 4.Remove harness mounting nuts (1) and fusible link holder mounting nut (2).
- 5.Disconnect harness connectors (3) and remove battery terminal with fusible link (4).
INSTALLATIONInstall in the reverse order of removal.
| Harness mounting nut |
 : 13.2 N·m (1.3 kg-m, 10 ft-lb) |
| Fusible link holder mounting nut |
| : 13.2 N·m (1.3 kg-m, 10 ft-lb) |
