DIAG ON CAN
CAN FUNDAMENTAL
Description
“Diag on CAN” is a diagnosis using CAN communication instead of previous DDL1 and DDL2 communication lines, between control units and diagnosis unit.

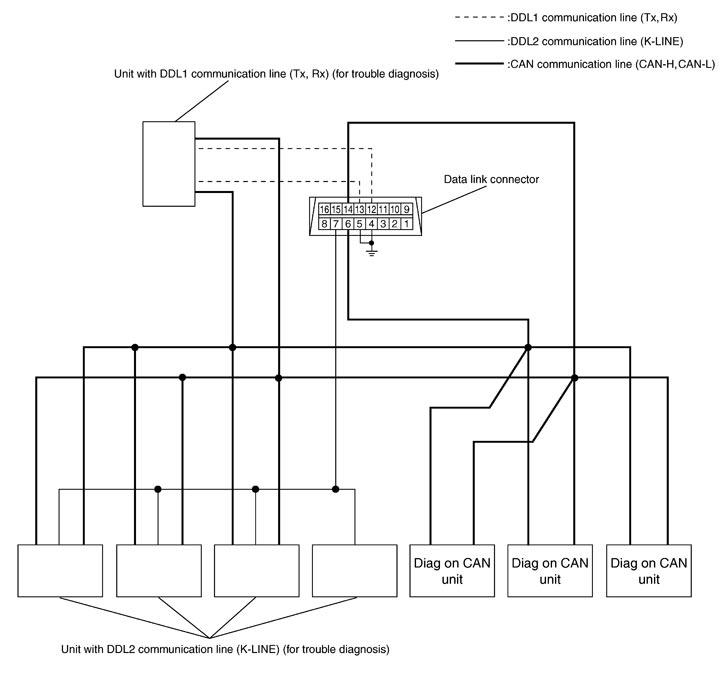

System Diagram
|
Name |
Harness |
Description |
|
DDL1 |
Tx Rx |
It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling) |
|
DDL2 |
K‐LINE |
It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling) |
|
Diag on CAN |
CAN‐H CAN‐L |
It is used for trouble diagnosis and control. |
