CAN COMMUNICATION SYSTEM
CAN

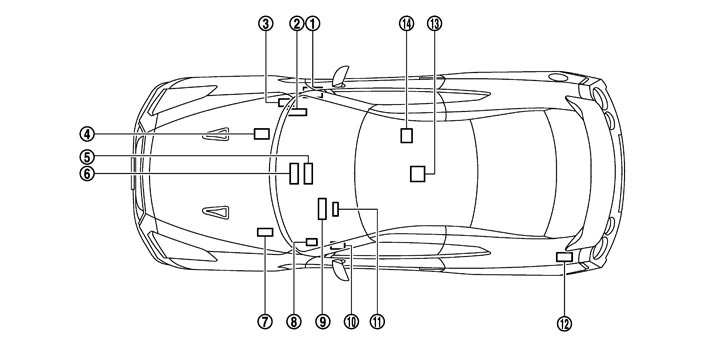

Component Parts Location
|
1. |
BCM M122 |
2. |
ECM M107 |
3. |
E‐SUS control unit M110 |
|
4. |
IPDM E/R E6 |
5. |
AV control unit M81 |
6. |
A/C auto amp. M66 |
|
7. |
ABS actuator and electric unit (control unit) E41 |
8. |
Data link connector M24 |
9. |
Combination meter M53 |
|
10. |
Low tire pressure warning control unit M14 |
11. |
Steering angle sensor M37 |
12. |
TCM B45 |
|
13. |
Air bag diagnosis sensor unit M147 |
14. |
AWD control unit B213 |
|
|

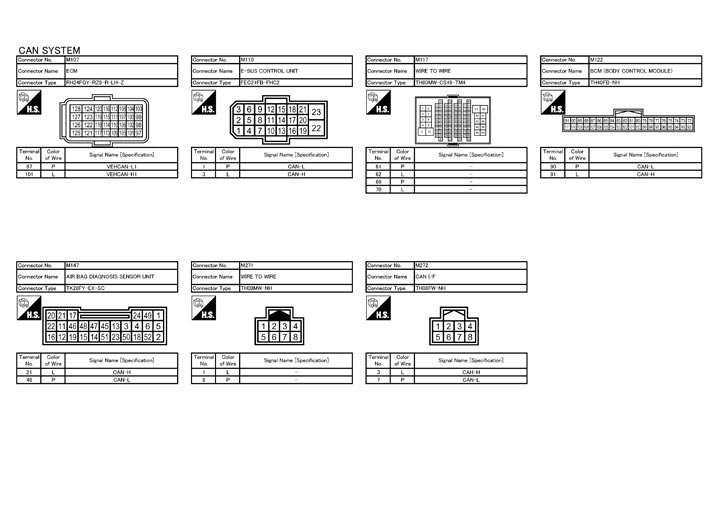

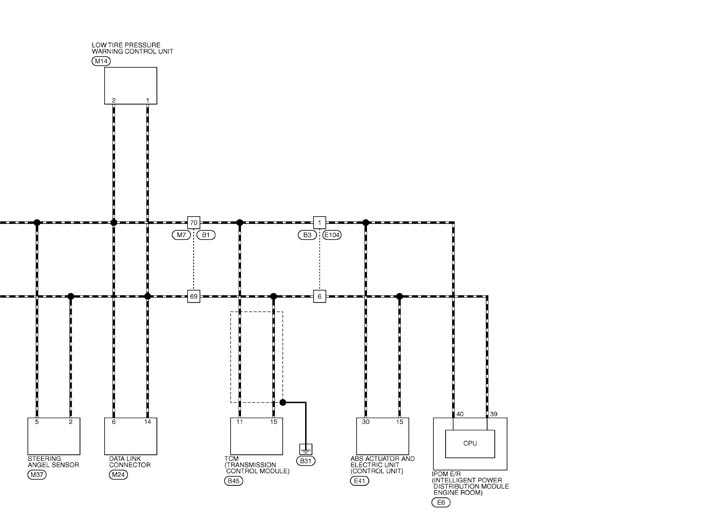

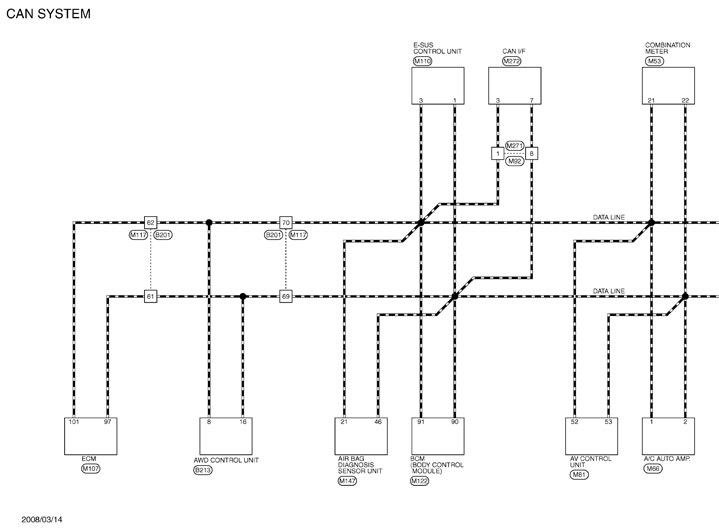

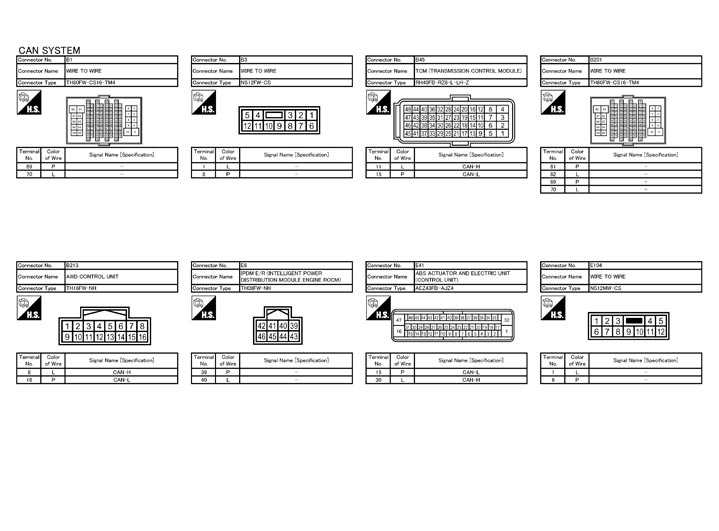

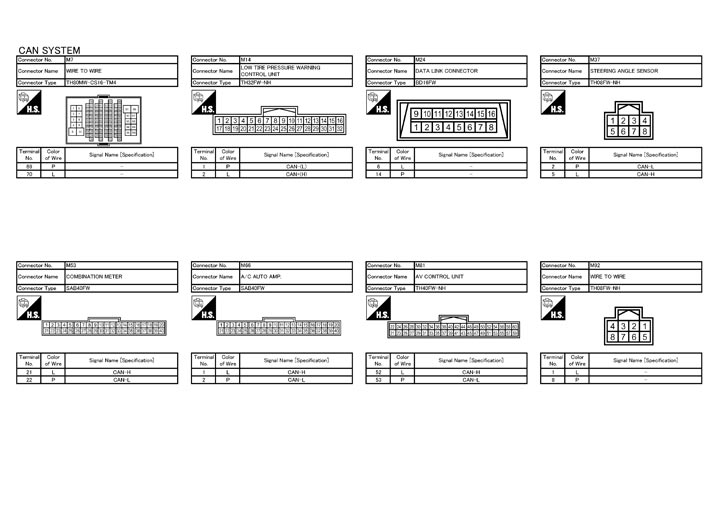

Wiring Diagram - CAN SYSTEM -
