POWER SEAT FOR DRIVER SIDE
System Description
SLIDING OPERATIONWhile operating the sliding switch located in power seat switch, sliding motor operates and makes possible the seat forward and backward position adjustment.
RECLINING OPERATIONWhile operating the reclining switch located in power seat switch, reclining motor operates and makes possible the seat back forward and backward position adjustment.
LIFTING OPERATION- While operating the lifting switch located in power seat switch, lifting motor operates and makes possible the rear portion of seat cushion up and down position adjustment.
- Thigh support motor is activated and the front portion of seat cushion can be adjusted upward or downward, while thigh support switch being operated.

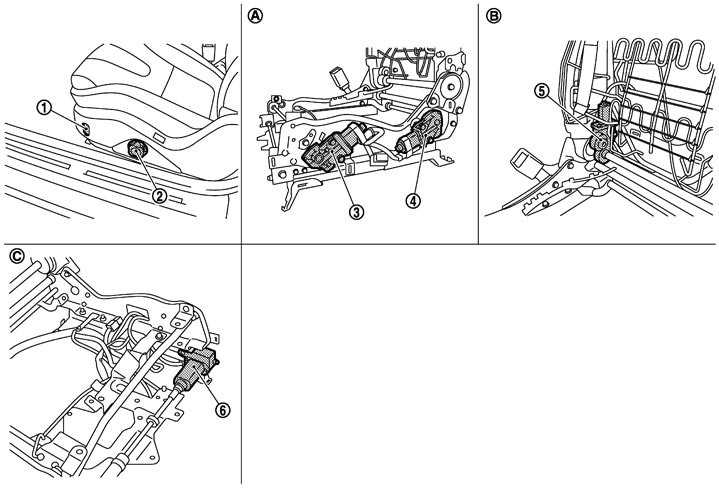

Component Parts Location
|
1. |
Thigh support switch B511 |
2. |
Power seat switch (driver side) B512 |
3. |
Thigh support motor B502 |
|
4. |
Lifting motor (rear) B509 |
5. |
Reclining motor B514 |
6. |
Sliding motor B510 |
|
A. |
Behind the seat cushion outer finisher outside |
B. |
Built in seat back |
C. |
Built in seat cushion |
Component Description
|
Item |
Function |
|
Power seat switch |
Built-in reclining switch, sliding switch and lifting switch, controls the power supplied to each motor. |
|
Thigh support switch |
Detect the operation of thigh support motor. |
|
Lifting motor |
Operates seat lift up and down. |
|
Reclining motor |
With the power supplied to power seat switch, operates the forward and backward of seat back. |
|
Sliding motor |
With the power supplied to power seat switch, operates the forward and backward slide of seat. |
|
Thigh support motor |
Operates the front portion of seat cushion up and down. |
