POWER SEAT FOR PASSENGER SIDE

System Description


 SLIDING OPERATION

  • While operating the sliding switch located in power seat switch, sliding motor operates and makes possible the seat forward and backward position adjustment.
  • While operating the sliding switch (seat back) in seat back, sliding motor operates and makes possible the seat forward and backward position adjustment.

 RECLINING OPERATION

While operating the reclining switch located in power seat switch, reclining motor operates and makes possible the seat back forward and backward position adjustment.

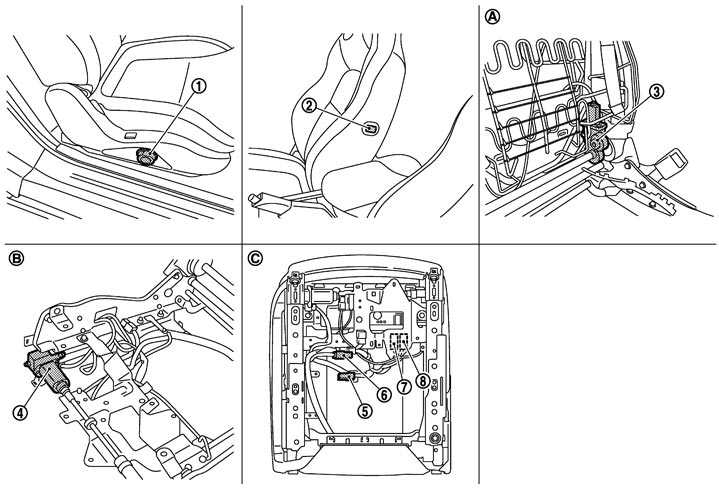

Component Parts Location



1.
 		Power seat switch
(with sliding switch) B553
Power seat switch
(without sliding switch) B568
 		2.
 		Sliding switch (seat back) B567
 		3.
 		Reclining motor B564
4.
 		Sliding motor B563
 		5.
 		Sliding relay (backward) B559
 		6.
 		Sliding relay (forward) B558
7.
 		Reclining relay (backward) B561
 		8.
 		Reclining relay (forward) B560

A.
 		Built in seat back
 		B.
 		Built in seat cushion
 		C.
 		Back side of seat cushion

Component Description


Item
 		Function
Power seat switch
 		Built-in reclining switch and sliding switch controls the power supplied to each motor.
Sliding switch
 		Detect the operation of sliding motor.
Reclining motor
 		With the power supplied to power seat switch, operates the forward and backward of seat back.
Sliding motor
 		With the power supplied to power seat switch, operates the forward and backward slide of seat.
