Nissan GT-R (R35) · Service Manual BODY INTERIOR

HEATED SEAT

System Description


  • By turning seat heated switch ON, seat cushion heater and seat back heater are activated.
  • By switching seat switch to HI or LO, the number of activated heaters changes and seat warming seed is adjusted.

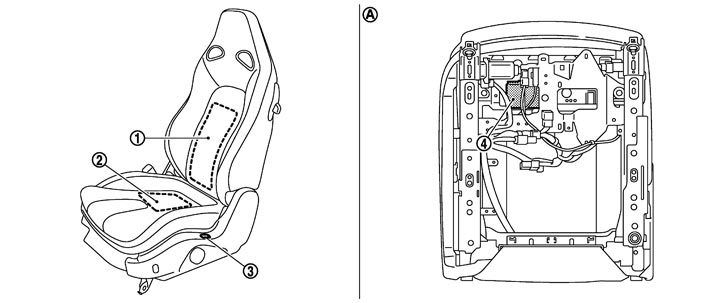

Component Parts Location



1.
 		Seat back heater
Driver side: B515
Passenger side: B565
 		2.
 		Seat cushion heater
Driver side: B507 B508
Passenger side: B555 B556
 		3.
 		Heated seat switch
Driver side: B513
Passenger side: B554
4.
 		Heated seat control unit B552



A.
 		Back side of seat cushion




Component Description


Item
 		Function
Heated seat control unit
  • Activates seat cushion heater and seat back heater via heated seat switch signal.
  • Controls seat heater (passenger side).
Heated seat switch
  • Supplies power supply to each heater.
  • Changes the number of activated heaters depending on the HI or LO switch position.
Seat cushion heater
 		Built in seat cushion and is activated by power supply from heated seat switch.
Seat back heater
 		Built in seat back and is activated by power supply from heated seat switch.
