Nissan GT-R (R35) · Service Manual BODY INTERIOR

POWER SEAT

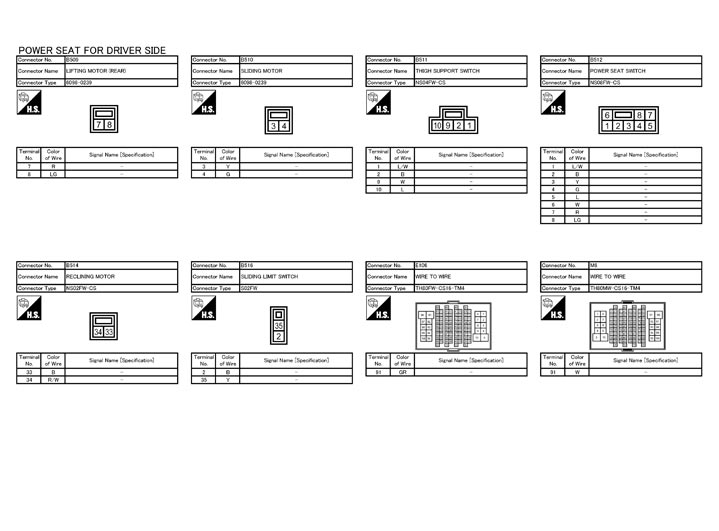

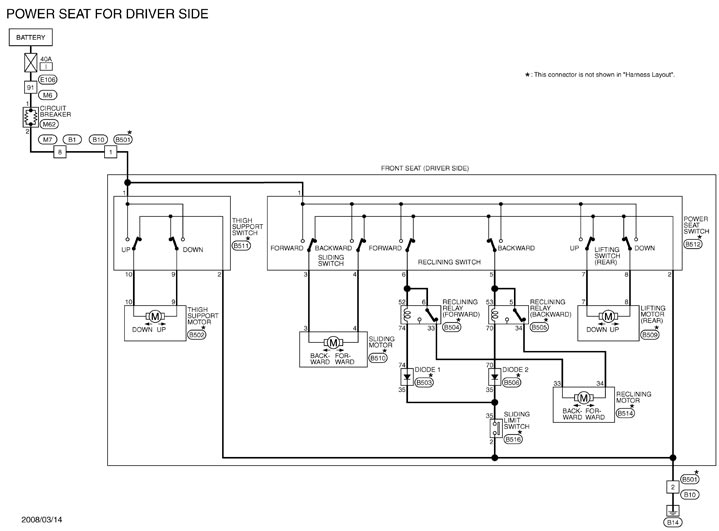

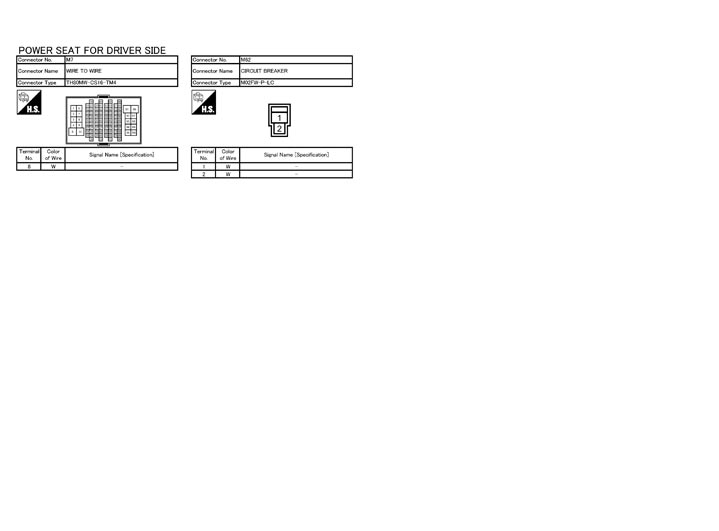

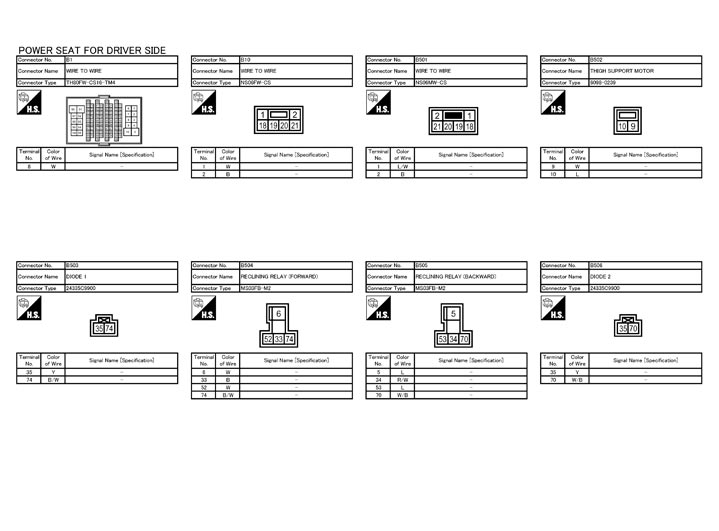

Wiring Diagram - POWER SEAT FOR DRIVER SIDE -

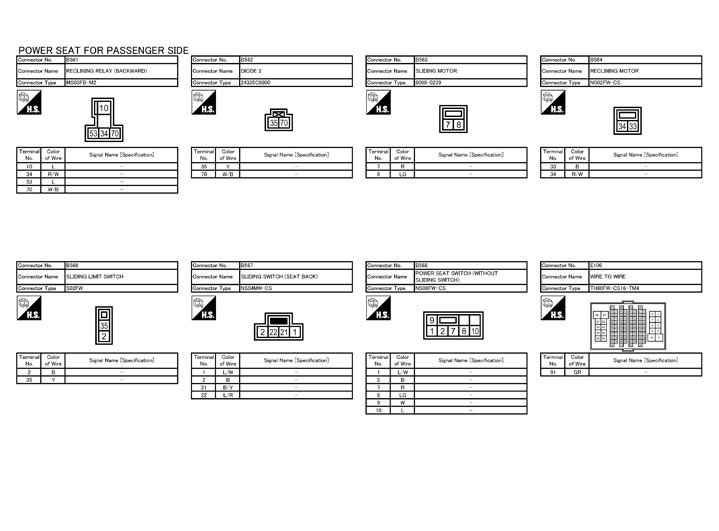

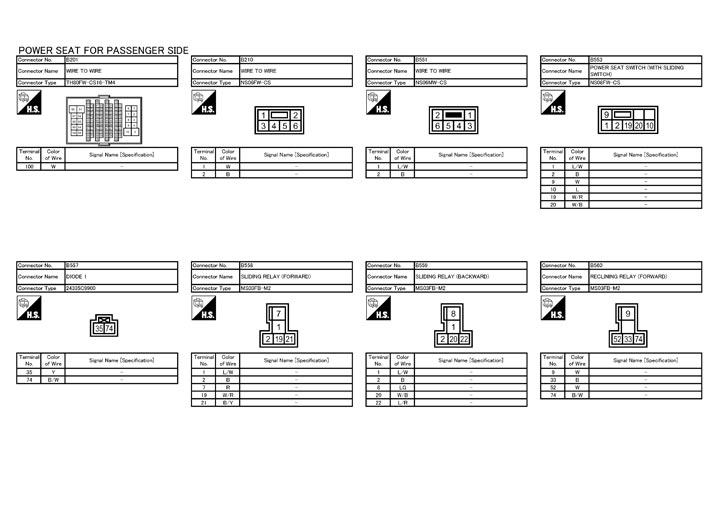

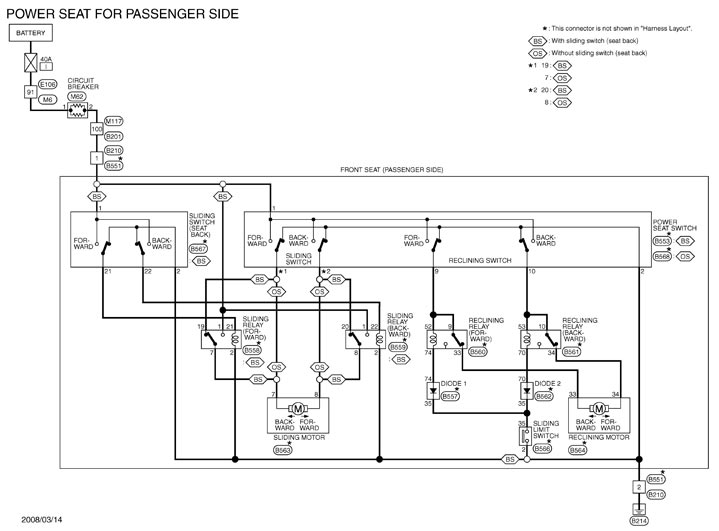

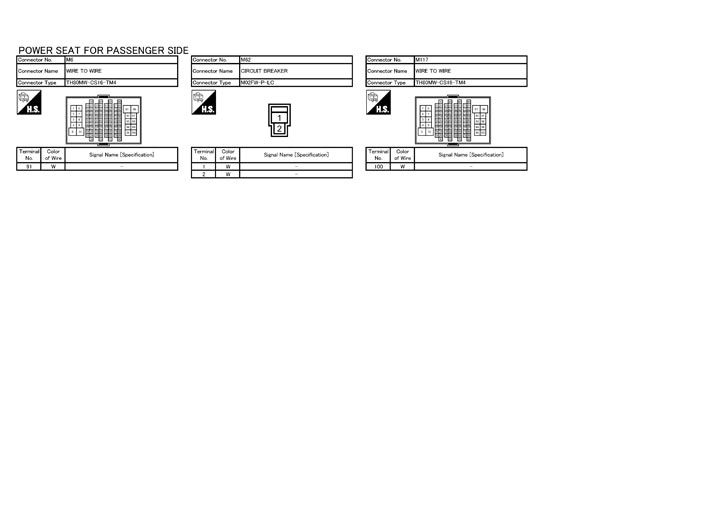

Wiring Diagram - POWER SEAT FOR PASSENGER SIDE -
