BOSE AMP.
BOSE AUDIO WITH NAVIGATION
Reference Value

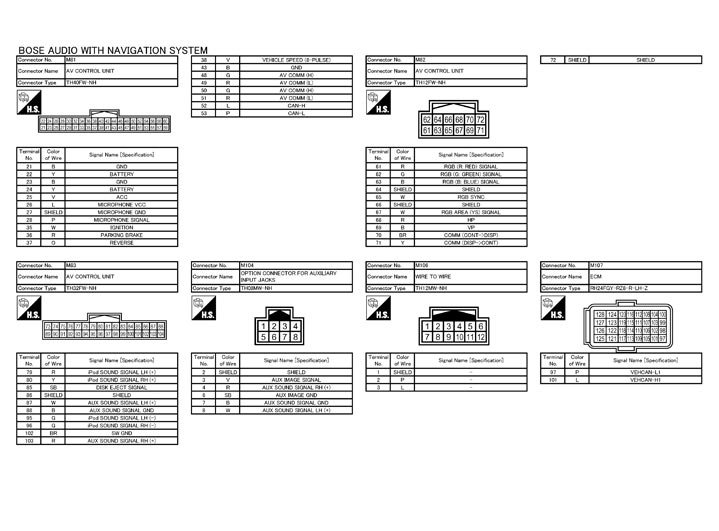

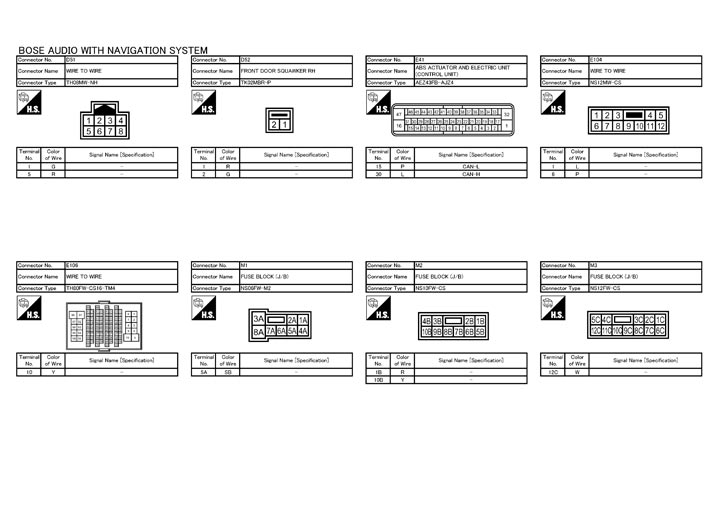

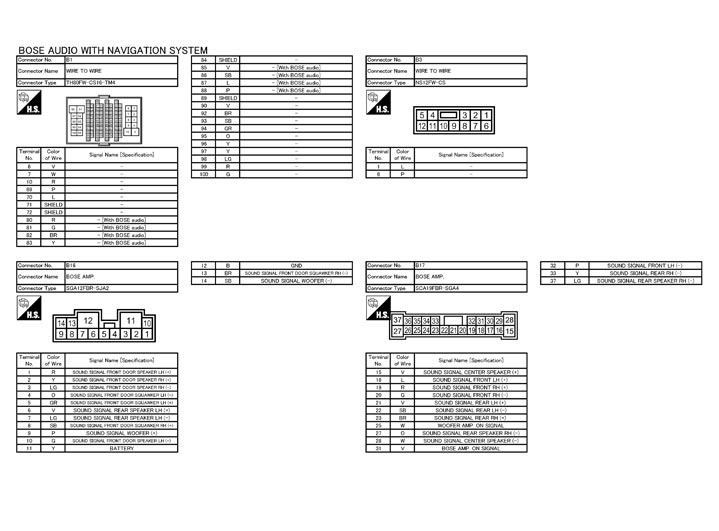

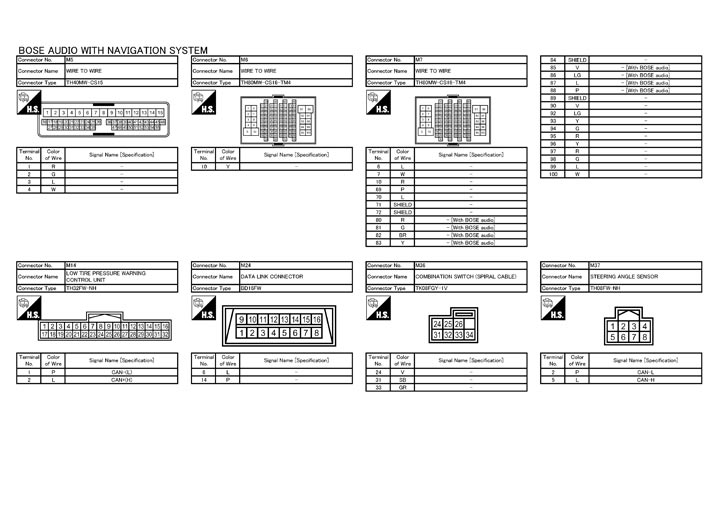

TERMINAL LAYOUT
PHYSICAL VALUES|
Terminal (Wire color) |
Description |
Condition |
Reference value (Approx.) |
|||
|
+ |
– |
Signal name |
Input/Output |
|||
|
1 (R) |
10 (G) |
Sound signal front door speaker LH |
Output |
Ignition switch ON |

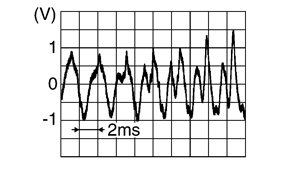

Voice output |
|
|
2 (Y) |
3 (LG) |
Sound signal front door speaker RH |
Output |
Ignition switch ON |
Voice output |
|
|
4 (O) |
5 (GR) |
Sound signal front door squawker LH |
Output |
Ignition switch ON |
Voice output |
|
|
6 (V) |
7 (LG) |
Sound signal rear speaker LH |
Output |
Ignition switch ON |
Voice output |
|
|
8 (SB) |
13 (BR) |
Sound signal front door squawker RH |
Output |
Ignition switch ON |
Voice output |
|
|
9 (P) |
14 (SB) |
Sound signal woofer |
Output |
Ignition switch ON |
Voice output |
|
|
11 (Y) |
Ground |
Battery power supply |
Input |
Ignition switch OFF |
— |
Battery voltage |
|
12 (B) |
Ground |
Ground |
— |
Ignition switch ON |
— |
0 V |
|
15 (V) |
28 (W) |
Sound signal center speaker |
Output |
Ignition switch ON |
Voice output |
|
|
18 (L) |
32 (P) |
Sound signal front LH |
Input |
Ignition switch ON |
Voice output |
|
|
19 (R) |
20 (G) |
Sound signal front RH |
Input |
Ignition switch ON |
Voice output |
|
|
21 (V) |
22 (SB) |
Sound signal rear LH |
Input |
Ignition switch ON |
Voice output |
|
|
23 (BR) |
33 (Y) |
Sound signal rear RH |
Input |
Ignition switch ON |
Voice output |
|
|
25 (W) |
Ground |
Woofer amp. ON signal |
Output |
Ignition switch ON |
— |
12 V |
|
31 (V) |
Ground |
BOSE amp. ON signal |
Input |
Ignition switch ON |
— |
11 V |
|
37 (LG) |
27 (O) |
Sound signal rear speaker RH |
Output |
Ignition switch ON |
Voice output |
|

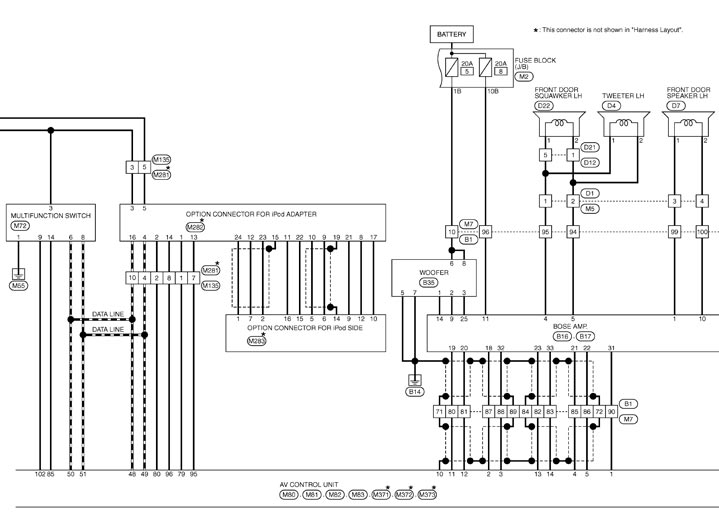

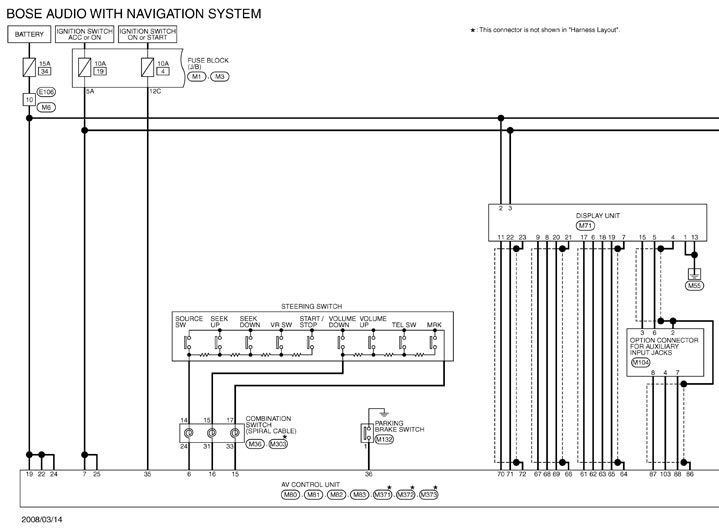

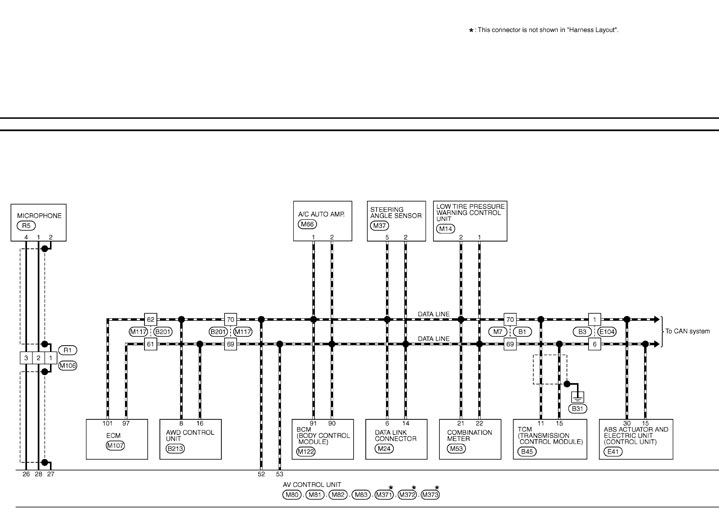

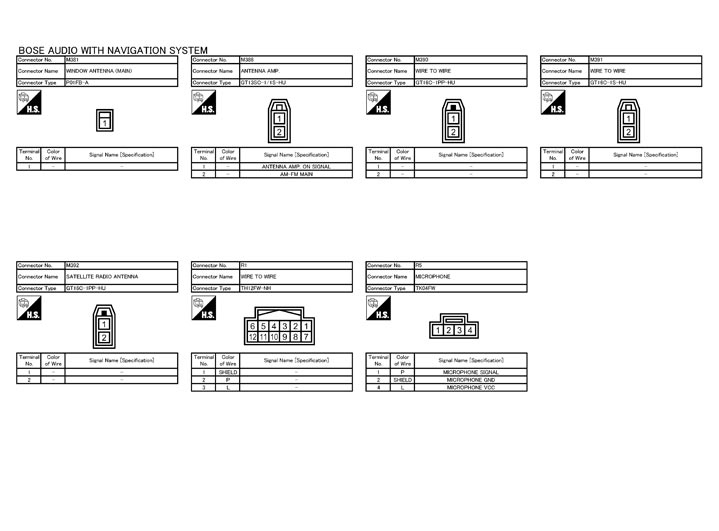

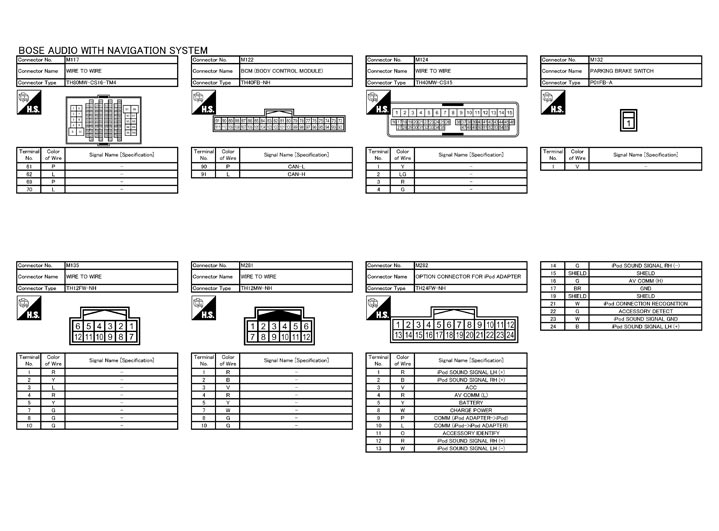

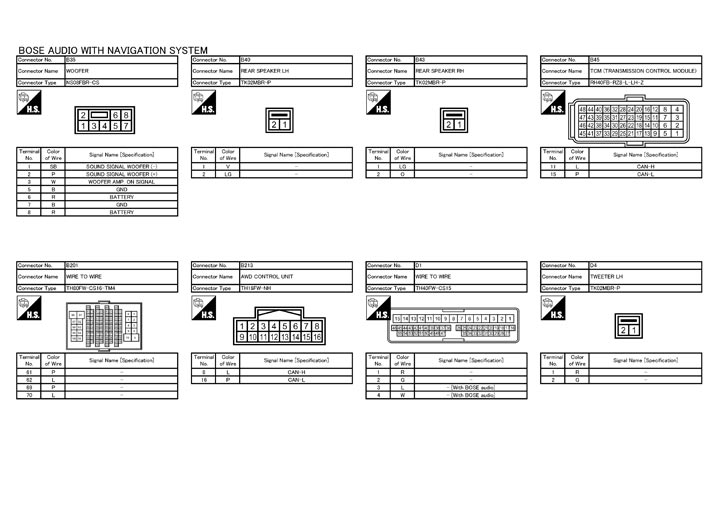

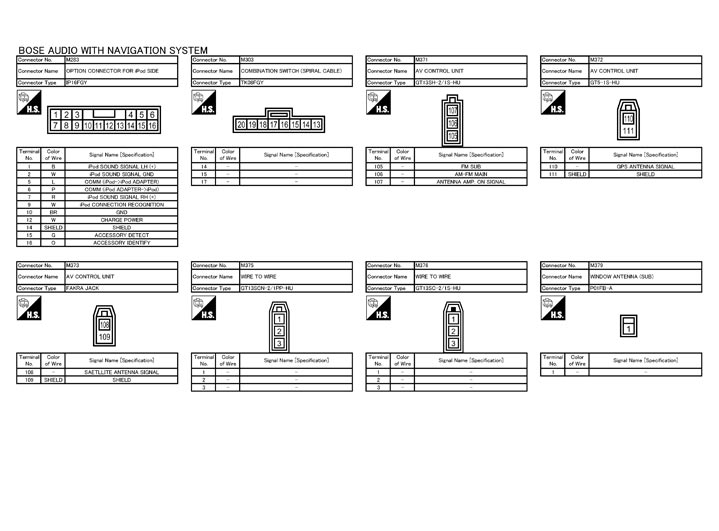

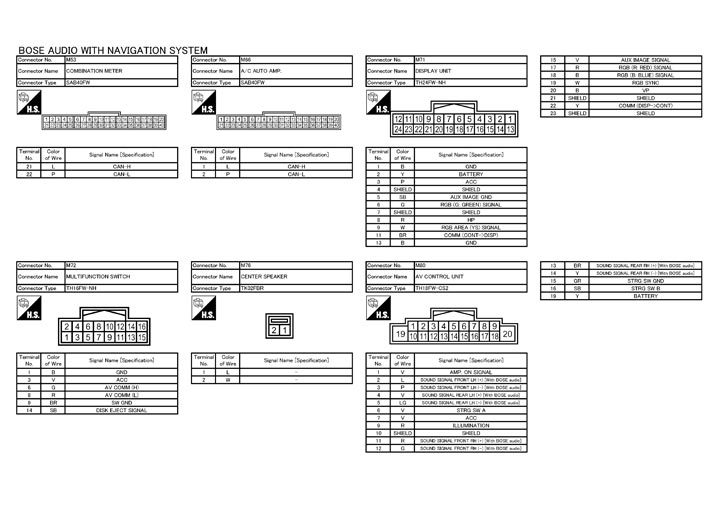

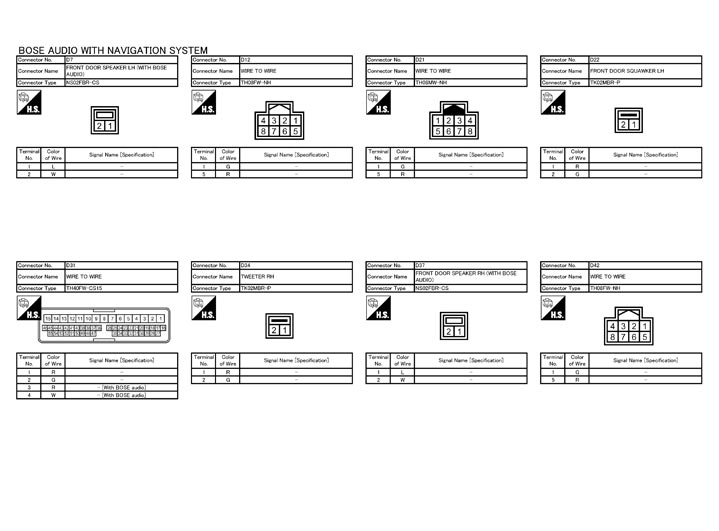

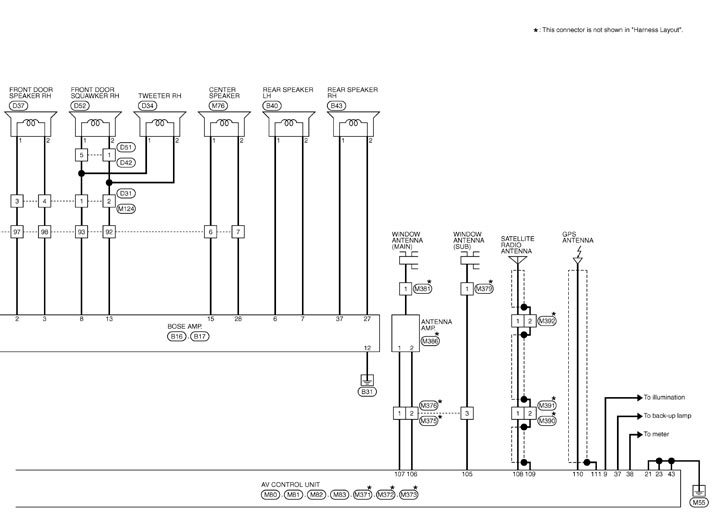

Wiring Diagram - BOSE AUDIO WITH NAVIGATION SYSTEM -
NOTE：
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION SWITCH virtually.
