FRONT DOOR SQUAWKER
BOSE AUDIO WITH NAVIGATION

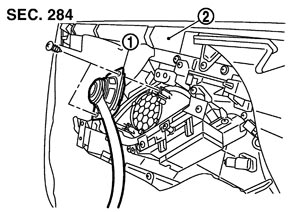

Exploded View
|
1. |
Front door squawker |
|
2. |
Front door finisher |
Removal and Installation
REMOVAL- 1.Remove the front door finisher. Refer to Removal and Installation.
- 2.Remove the screws, and then remove the front door squawker from the front door finisher.
INSTALLATIONInstall in the reverse order of removal.
