Nissan GT-R (R35) · Service Manual DRIVER INFORMATION & MULTIMEDIA

AV CONTROL UNIT

BOSE AUDIO WITH NAVIGATION

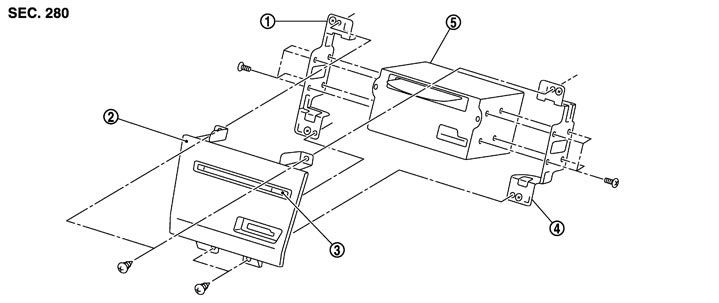

Exploded View


 REMOVAL

Refer to Exploded View.

 DISASSEMBLY



1.
 		Bracket LH
 		2.
 		Cluster lid C (lower)
 		3.
 		Disk eject switch
4.
 		Bracket RH
 		5.
 		AV control unit


Removal and Installation


■ CAUTION ■
 Be careful of the following items at removal and installation of control device. Refer to Removal and Installation for details.
  • For electro-medical apparatus user, keep the range sensor away from the device.
  • Keep the range sensor away from magnetic objects during work.


 REMOVAL

    1.Remove the cluster lid C (lower). Refer to Removal and Installation.
    2.Disconnect the connector, and then remove the AV control unit together with the bracket from the vehicle.
    3.Remove the bracket from the AV control unit.
