REAR SPEAKER
BOSE AUDIO WITH NAVIGATION

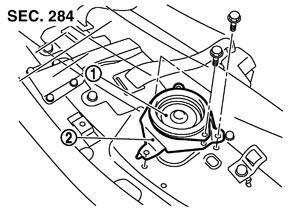

Exploded View
|
1. |
Rear speaker |
|
2. |
Speaker bracket |
Removal and Installation
REMOVAL- 1.Remove the rear parcel shelf finisher. Refer to Removal and Installation.
- 2.Remove the rear speaker bracket mounting screws and disconnect the connector, and then remove the rear speaker together with the speaker bracket.
- 3.Remove the speaker from the speaker bracket.
INSTALLATIONInstall in the reverse order of removal.
