Nissan GT-R (R35) · Service Manual DRIVER INFORMATION & MULTIMEDIA

CENTER SPEAKER

BOSE AUDIO WITH NAVIGATION

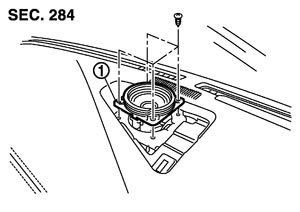

Exploded View


 REMOVAL

Refer to Exploded View.



1.
 		Center speaker

Removal and Installation


 REMOVAL

    1.Remove the center speaker grille. Refer to Removal and Installation.
    2.Remove the screws and disconnect the connector, and then remove the center speaker.

 INSTALLATION

Installation is the reverse order of removal.
