Nissan GT-R (R35) · Service Manual DRIVER INFORMATION & MULTIMEDIA

BOSE AMP.

BOSE AUDIO WITH NAVIGATION

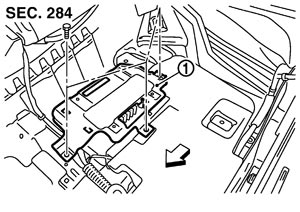

Exploded View



1.
 		BOSE amp.
:
 		Front of vehicle

Removal and Installation


 REMOVAL

    1.Remove the driver seat. Refer to Removal and Installation.
    2.Turn over the floor carpet (refer to Removal and Installation), remove the screws and disconnect the connector, and then remove the BOSE amp.

 INSTALLATION

Installation is the reverse order of removal.
