ANTENNA AMP.
BOSE AUDIO WITH NAVIGATION

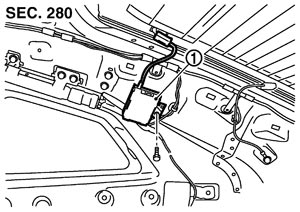

Exploded View
|
1. |
Antenna amp. |
Removal and Installation
REMOVAL- 1.Remove the rear pillar finisher (RH). Refer to Removal and Installation.
- 2.Remove the screw and disconnect the connector, and then remove the radio antenna amplifier from the vehicle.
INSTALLATIONInstall in the reverse order of removal.
