MULTIFUNCTION SWITCH

BOSE AUDIO WITH NAVIGATION

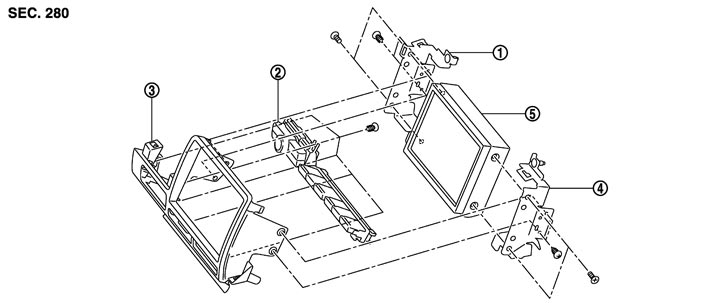

Exploded View


 REMOVAL

Refer to Exploded View.

 DISASSEMBLY



1.
 		Bracket (LH)
 		2.
 		Multifunction switch
 		3
 		Cluster lid C (upper)
4.
 		Bracket (RH)
 		5.
 		Display unit


Removal and Installation


 REMOVAL

    1.Remove the cluster lid C. Refer to Removal and Installation.
    2.Remove the screws (A), and then remove the multifunction switch from the cluster lid C (upper).

 INSTALLATION

Installation is the reverse order of removal.
