Nissan GT-R (R35) · Service Manual DRIVER INFORMATION & MULTIMEDIA

MICROPHONE

BOSE AUDIO WITH NAVIGATION

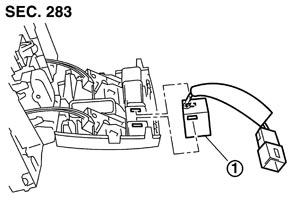

Exploded View



1.
 		Microphone

Removal and Installation


 REMOVAL

    1.Remove map lamp. Refer to Exploded View.
    2.Remove the microphone from the map lamp.

 INSTALLATION

Install in the reverse order of removal.
