PARKING BRAKE RELEASE WARNING CHIME
WARNING CHIME SYSTEM

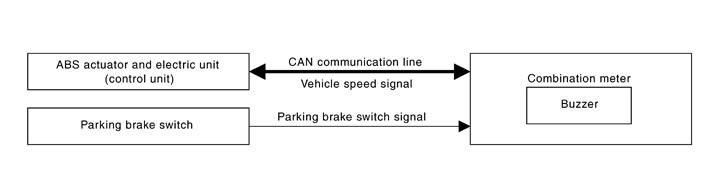

System Diagram
System Description
DESCRIPTIONParking brake release warning chime judges the remaining parking brake according to the vehicle speed signal received from the ABS actuator and electric unit (control unit) via CAN communication and the parking brake switch signal from parking brake switch to sound the warning buzzer.
WARNING OPERATION CONDITIONSIf all of the following conditions are fulfilled.
- Vehicle speed is 7 km/h (4.3 MPH) or higher
- Parking brake switch ON
WARNING CANCEL CONDITIONSWarning is canceled if any of the following conditions are fulfilled.
- Vehicle speed is approximately 3 km/h (1.9 MPH) or less
- Parking brake switch OFF

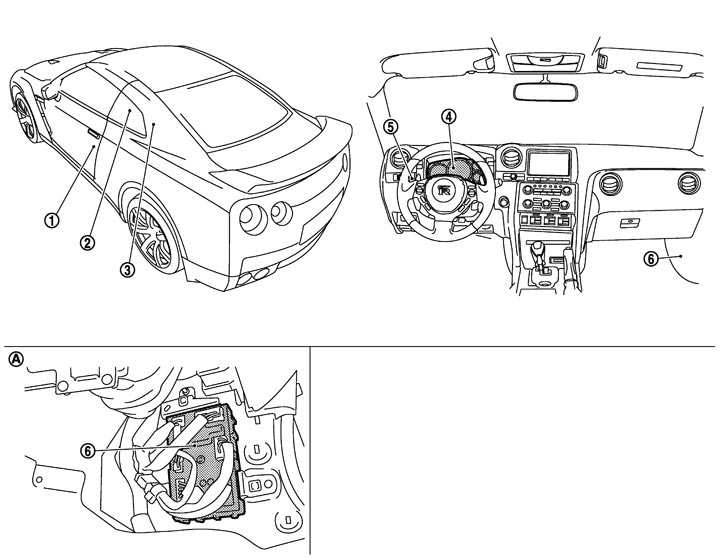

Component Parts Location
|
1. |
Door switch (driver side) |
2. |
Seat belt buckle switch (driver side) |
3. |
Parking brake switch |
|
4. |
Combination meter |
5. |
Combination switch (lighting switch) |
6. |
BCM |
|
A. |
Lower part of passenger side dashboard |
|
|
|
|
Component Description
|
Unit |
Description |
|
Combination meter |
Judges the remaining parking brake according to the vehicle speed signal received from the ABS actuator and electric unit (control unit) via CAN communication and the parking brake switch signal from parking brake switch and sounds the warning buzzer. |
|
ABS actuator and electric unit (control unit) |
Transmits the vehicle speed signal to the combination meter via CAN communication. |
|
Parking brake switch |
Transmits the parking brake switch signal to the combination meter. |
