CONDENSER

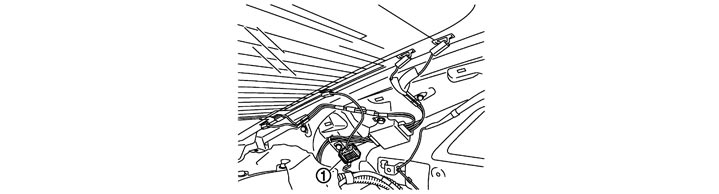

Exploded View
|
1. |
Condenser |
|
|
|
|
Removal and Installation
REMOVAL- 1.Remove the rear seat cushion and the rear seatback.Refer to Removal and Installation
- 2.Remove the rear kickplate, rear wheel well garnish and the rear pillar finisher.Refer to Removal and Installation

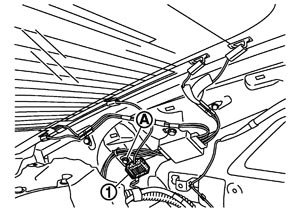

- 3.Remove bolt (A), and then remove condenser (1) from the vehicle body.
INSTALLATIONInstall in the reverse order of removal.
