PREPARATION

The actual shapes of Kent‐Moore tools may differ from those of special service tools illustrated here.

HFC-134a (R-134a) Service Tool and Equipment

• Never mix HFC‐134a (R‐134a) refrigerant and/or its specified lubricant with CFC‐12 (R‐12) refrigerant and/or its lubricant.
• Separate and non‐interchangeable service equipment must be used for handling each type of refrigerant/lubricant.
• Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles refrigerant and/or lubricant) are different between CFC‐12 (R‐12) and HFC‐134a (R‐134a). This is to avoid mixed use of the refrigerants/lubricant.
• Never use adapters that convert one size fitting to another: refrigerant/lubricant contamination occurs and compressor malfunction may result.

Tool number (Kent‐Moore No.) Tool name		Description

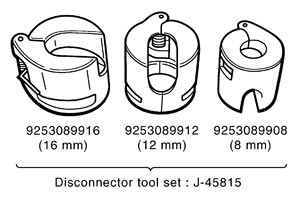

9253089908 (for high‐pressure pipe 1) (‐) 9253089912 (for high‐pressure flexible hose) (‐) 9253089916 (for low‐pressure pipe 2 and low‐pressure flexible hose) (‐) Disconnector tool set (J‐45815)		Disconnect one‐touch joint connection

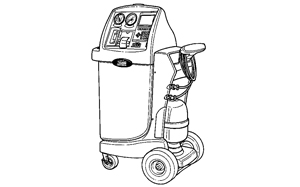

(ACR2005‐NI) ACR5 A/C Service Center		Function: Refrigerant recovery, recycling and recharging
(J‐41995) Electrical leak detector		Power supply: DC 12 V (Battery terminal)

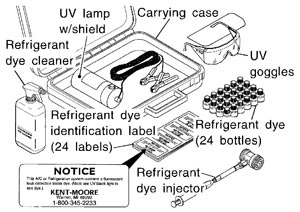

(J‐43926) Refrigerant dye leak detection kit Kit includes: (J‐42220) UV lamp and UV safety goggles (J‐41459) HFC‐134a (R‐134a) dye injector Use with J‐41447, 1/4 ounce bottle (J‐41447) HFC‐134a (R‐134a) fluorescent leak detection dye (Box of 24, 1/4 ounce bottles) (J‐43872) Refrigerant dye cleaner		Power supply: DC 12 V (Battery terminal)

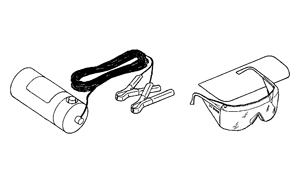

(J‐42220) UV lamp and UV safety goggles		Power supply: DC 12 V (Battery terminal) For checking refrigerant leakage when fluorescent dye is equipped in A/C system Includes: UV lamp and UV safety goggles

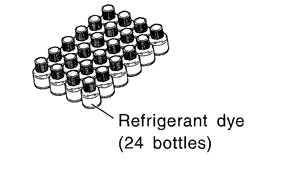

(J‐41447) HFC‐134a (R‐134a) fluorescent leak detection dye (Box of 24, 1/4 ounce bottles)		Application: For HFC‐134a (R‐134a) PAG oil Container: 1/4 ounce (7.4 cc) bottle (Includes self‐adhesive dye identification labels for affixing to vehicle after charging system with dye.)
(J‐41459) HFC‐134a (R‐134a) dye injector Use with J‐41447, 1/4 ounce bottle		For injecting 1/4 ounce of fluorescent leak detection dye into A/C system
(J‐43872) Refrigerant dye cleaner		For cleaning dye spills
(J‐39183) Manifold gauge set (with hoses and couplers)		Identification: The gauge face indicates HFC‐134a (R‐134a). Fitting size: Thread size 1/2″‐16 ACME

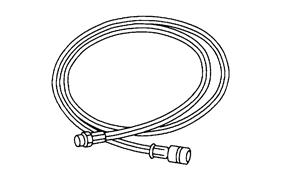

Service hoses High‐pressure side hose (J‐39501‐72) Low‐pressure side hose (J‐39502‐72) Utility hose (J‐39476‐72)		Hose color: Low‐pressure side hose: Blue with black stripe High‐pressure side hose: Red with black stripe Utility hose: Yellow with black stripe or green with black stripe Hose fitting to gauge: 1/2″‐16 ACME

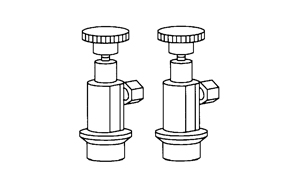

Service couplers High‐pressure side coupler (J‐39500‐20) Low‐pressure side coupler (J‐39500‐24)		Hose fitting to service hose: M14 x 1.5 fitting is optional or permanently attached.

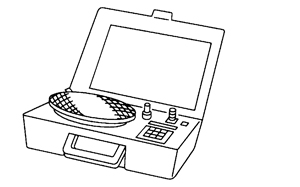

(J‐39650) Refrigerant weight scale		For measuring of refrigerant Fitting size: Thread size 1/2″‐16 ACME

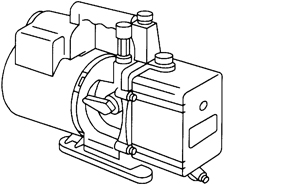

(J‐39649) Vacuum pump (Including the isolator valve)		Capacity: Air displacement: 4 CFM Micron rating: 20 microns Oil capacity: 482 g (17 oz.) Fitting size: Thread size 1/2″‐16 ACME

Tool name		Description

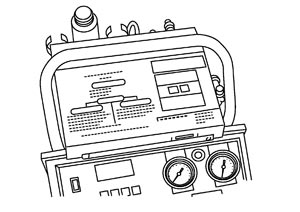

Refrigerant identifier equipment		Checking for refrigerant purity and system contamination
Power tool		For loosening bolts and nuts

HFC-134a (R-134a) Service Tool and Equipment

• Never mix HFC‐134a (R‐134a) refrigerant and/or its specified lubricant with CFC‐12 (R‐12) refrigerant and/or its lubricant.
• Separate and non‐interchangeable service equipment must be used for handling each type of refrigerant/lubricant.
• Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles refrigerant and/or lubricant) are different between CFC‐12 (R‐12) and HFC‐134a (R‐134a). This is to avoid mixed use of the refrigerants/lubricant.
• Never use adapters that convert one size fitting to another: refrigerant/lubricant contamination occurs and compressor malfunction may result.

Tool name		Description
HFC‐134a (R‐134a) refrigerant		Container color: Light blue Container marking: HFC‐134a (R‐134a) Fitting size: Thread size Large container 1/2″‐16 ACME
NISSAN A/C System Oil Type S (DH‐PS)		Type: Polyalkylene glycol oil (PAG), type S (DH‐PS) Application: HFC‐134a (R‐134a) swash plate compressors (NISSAN only) Capacity: 40 m (1.4 US fl oz., 1.4 Imp fl oz.)
