Nissan GT-R (R35) · Service Manual VENTILATION, HEATER & AIR CONDITIONER

SUNLOAD SENSOR

AUTOMATIC AIR CONDITIONER

Exploded View





1.
 		Sunload sensor
2.
 		Front defroster grille (left)
3.
 		Instrument panel assembly

Removal and Installation


 REMOVAL

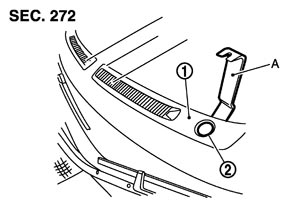

    1.Remove front defroster grille (left) (1), using remover tools (A). Refer to Exploded View.
    2.Disconnect sunload sensor connector, and then remove sunload sensor (2).

 INSTALLATION

Installation is basically the reverse order of removal.
