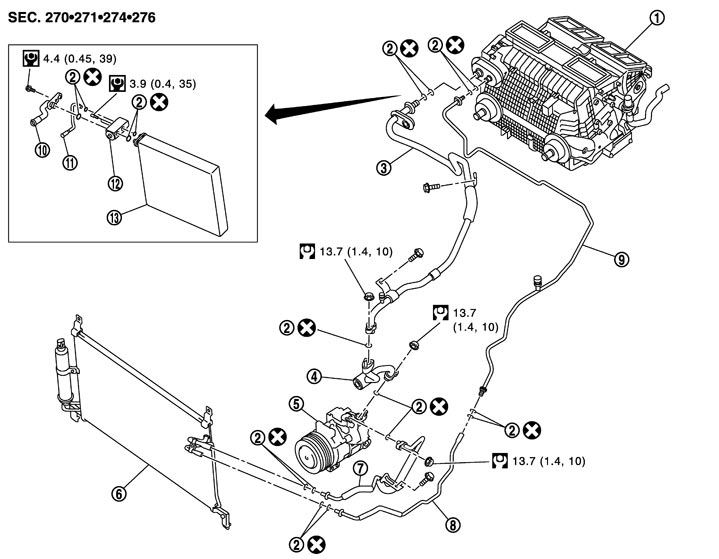

COOLER PIPE AND HOSE
Refer to Refrigerant Connection.
| 1. | Heater & cooling unit assembly | 2. | O‐ring | 3. | Low‐pressure flexible hose |
| 4. | Low‐pressure pipe 2 | 5. | Compressor | 6. | Condenser |
| 7. | High‐pressure flexible hose | 8. | High‐pressure pipe 1 | 9. | High‐pressure pipe 2 |
| 10. | Low‐pressure pipe 1 | 11. | High‐pressure pipe 3 | 12. | Expansion valve |
| 13. | Evaporator | ||||
| Refer to Components for symbols in the figure. | |||||
