HEATER & COOLING UNIT ASSEMBLY

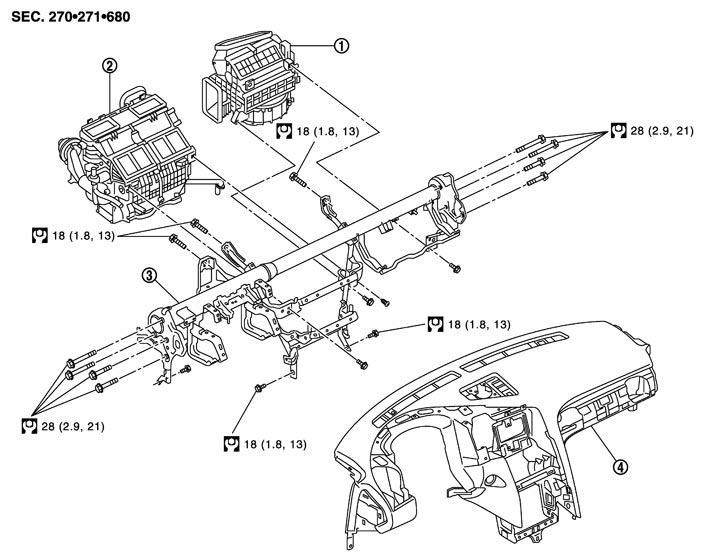

REMOVAL
|
1. |
Blower unit |
2. |
Heater & cooling unit assembly |
3. |
Steering member |
|
4. |
Instrument panel assembly |
|
|
|
|
|
Refer to Components for symbols in the figure. |
|||||

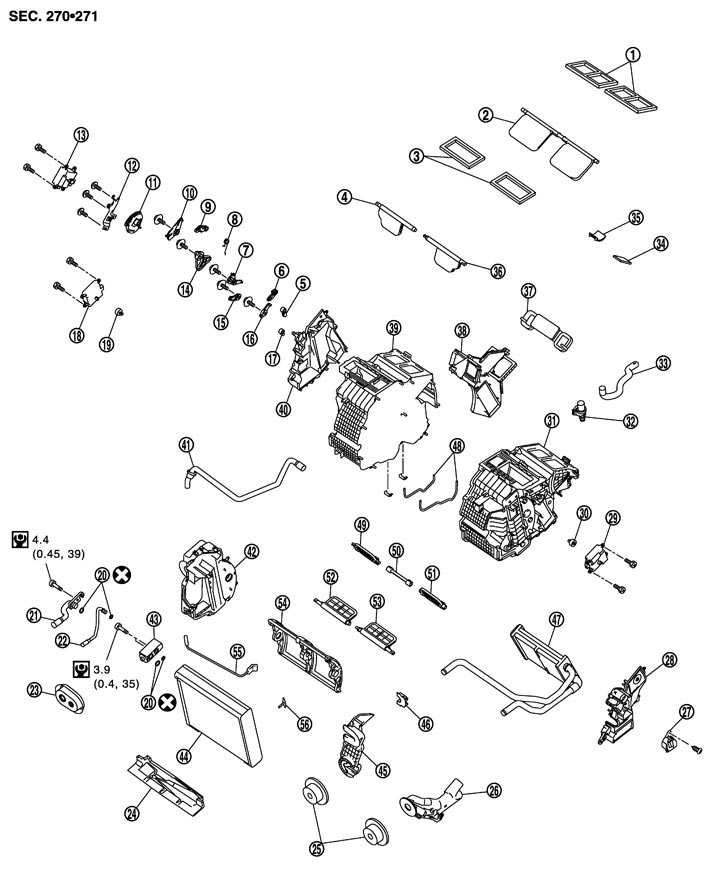

DISASSEMBLY
|
1. |
Ventilator seal |
2. |
Ventilator door |
3. |
Defroster seal |
|
4. |
Defroster door (right) |
5. |
Foot door lever |
6. |
Defroster door lever |
|
7. |
Foot door link |
8. |
Ventilator door spring |
9. |
Ventilator door lever |
|
10. |
Ventilator door link |
11. |
Main link |
12. |
Mode door motor bracket |
|
13. |
Mode door motor |
14. |
Main link sub |
15. |
Max. cool door link |
|
16. |
Defroster door link |
17. |
Max. cool door lever |
18. |
Air mix door motor (passenger side) |
|
19. |
Air mix door adapter |
20. |
O‐ring |
21. |
Low‐pressure pipe 1 |
|
22. |
High‐pressure pipe 3 |
23. |
Cooler pipe grommet |
24. |
Insulator |
|
25. |
Heater pipe grommet |
26. |
Heater pipe cover |
27. |
Heater duct |
|
28. |
Foot duct (left) |
29. |
Air mix door motor (driver side) |
30. |
Air mix door adapter |
|
31. |
Heater & cooling unit case (left) |
32. |
Aspirator |
33. |
Aspirator hose |
|
34. |
Packing |
35. |
Packing |
36. |
Defroster door (left) |
|
37. |
Rear ventilator cover |
38. |
Center case |
39. |
Heater & cooling unit case (right) |
|
40. |
Foot duct (right) |
41. |
Drain hose |
42. |
Evaporator cover |
|
43. |
Expansion valve |
44. |
Evaporator |
45. |
Evaporator cover adapter |
|
46. |
Heater pipe bracket |
47. |
Heater core |
48. |
Packing |
|
49. |
Foot door (right) |
50. |
Rear ventilator door |
51. |
Foot door (left) |
|
52. |
Max. cool door (right) |
53. |
Max. cool door (left) |
54. |
Air mix door (Slide door) |
|
55. |
Intake sensor |
56. |
Intake sensor bracket |
|
|
|
Refer to Components for symbols in the figure. |
|||||
