BLOWER UNIT
REMOVAL
|
1. |
Blower unit |
2. |
Heater & cooling unit assembly |
3. |
Steering member |
|
4. |
Instrument panel assembly |
|
|
|
|
|
Refer to Components for symbols in the figure. |
|||||

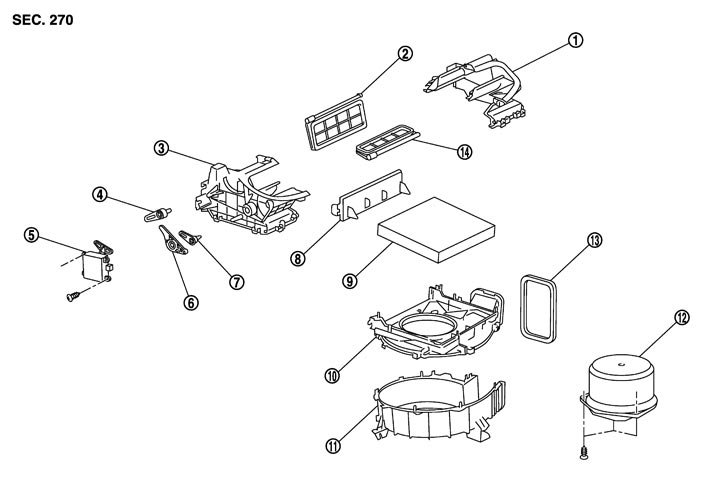

DISASSEMBLY
|
1. |
Intake box RH |
2. |
Intake door 2 |
3. |
Intake box LH |
|
4. |
Intake door lever 2 |
5. |
Intake door motor |
6. |
Intake door link |
|
7. |
Intake door lever 1 |
8. |
Filter cover |
9. |
In-cabin microfilter |
|
10. |
Intake upper case |
11. |
Intake lower case |
12. |
Blower motor assembly |
|
13. |
Seal |
14. |
Intake door 1 |
|
|
