BLOWER UNIT

1.Remove instrument lower panel RH. Refer to Exploded View.

2.Remove front floor spacer RH. Refer to Exploded View.

3.Disconnect E-SUS control unit connector.

4.Disconnect ECM connectors.

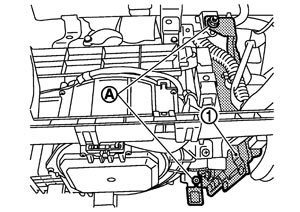

5.Remove mounting nuts (A), and then remove ECM (1) with bracket attached.

6.Remove power steering control unit. Refer to Exploded View (GT-R certified NISSAN dealer).

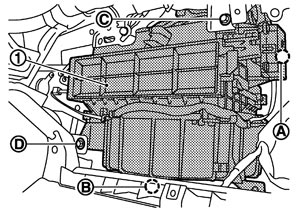

7.Disconnect intake door motor connector (A).

8.Disconnect blower motor connector (B).

9.Remove mounting bolt (C) and screw (D), from blower unit (1).

10.Remove blower unit.
■ CAUTION ■
Move blower unit rightward, and remove locating pin (1 part) and joint. Then remove blower unit downward.

Installation is basically the reverse order of removal.

■ CAUTION ■

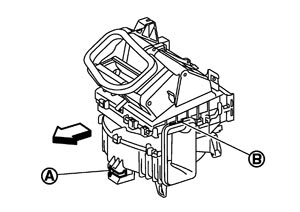

Make sure locating pin (A) and joint (B) are securely inserted.

: Vehicle front
