BLOWER MOTOR
BLOWER UNIT

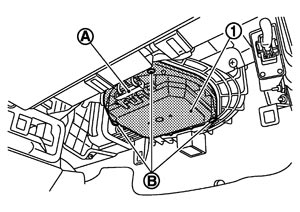

REMOVAL- 1.Remove instrument lower cover RH. Refer to Exploded View.
- 2.Disconnect blower motor connector (A).
- 3.Remove mounting screws (B), and then remove blower motor (1).
INSTALLATIONInstallation is basically the reverse order of removal.
