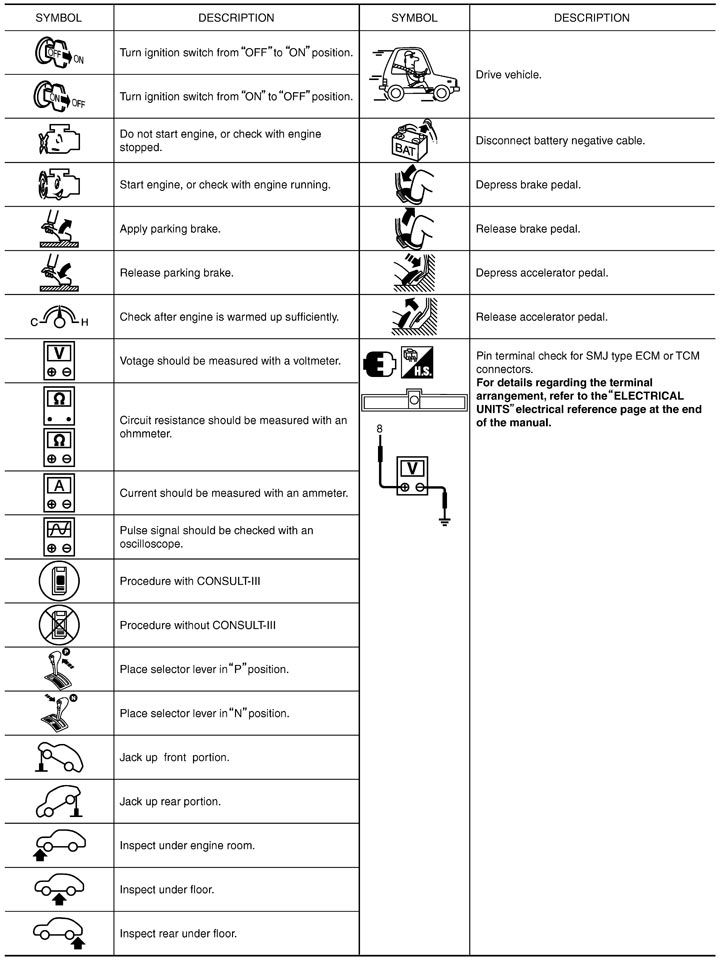

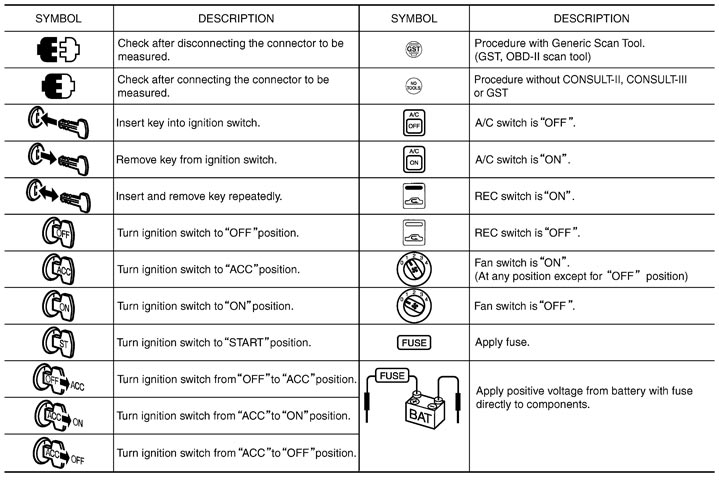

HOW TO FOLLOW TROUBLE DIAGNOSES

NOTICE：

Trouble diagnoses indicate work procedures required to diagnose problems effectively. Observe the following instructions before diagnosing.

• Before performing trouble diagnoses, read the “Work Flow” in each section.
• After repairs, re-check that the problem has been completely eliminated.
• Refer to Component Parts and Harness Connector Location for the Systems described in each section for identification/location of components and harness connectors.
• When checking circuit continuity, ignition switch should be OFF.
• Refer to the Circuit Diagram for quick pinpoint check.If you need to check circuit continuity between harness connectors in more detail, such as when a sub-harness is used, refer to Wiring Diagram in each individual section and Harness Layout in PG section for identification of harness connectors.
• Before checking voltage at connectors, check battery voltage.
• After accomplishing the Diagnosis Procedures and Electrical Components Inspection, make sure that all harness connectors are reconnected as they were.

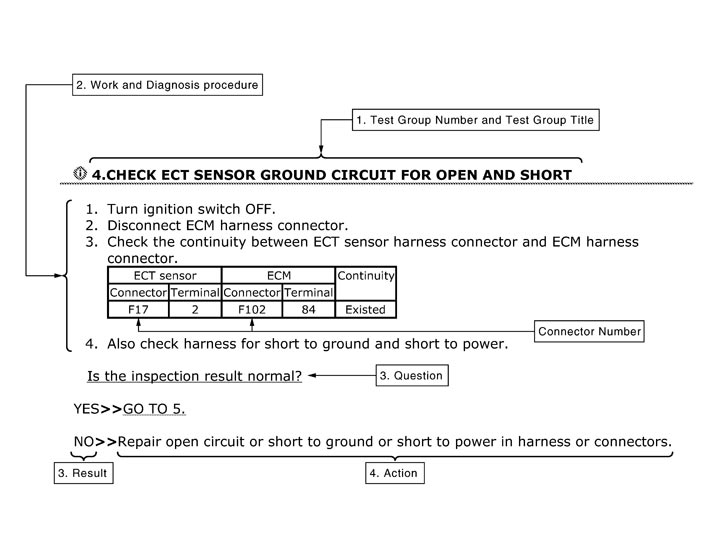

1.Test group number and test group title
• Test group number and test group title are shown in the upper portion of each test group.

2.Work and diagnosis procedure
• Start to diagnose a problem using procedures indicated in enclosed test groups.

3.Questions and results
• Questions and required results are indicated in test group.

4.Action
• Next action for each test group is indicated based on result of each question.
