IDENTIFICATION INFORMATION
Model Variation
|
Destination |
Body |
Transmission |
Engine |
Axle |
Grade |
Model |
|
USA |
COUPE |
Dual clutch transmission |
VR38DETT |
AWD |
GTX+Premium Edition |
GLRNLWG‐EUA |
|
CANADA |
GLRNLWG‐ENA |

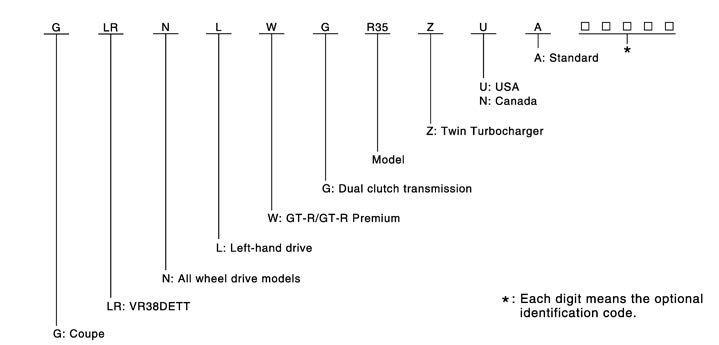

Model variation code (Prefix and suffix designations)
Information About Identification or Model Code

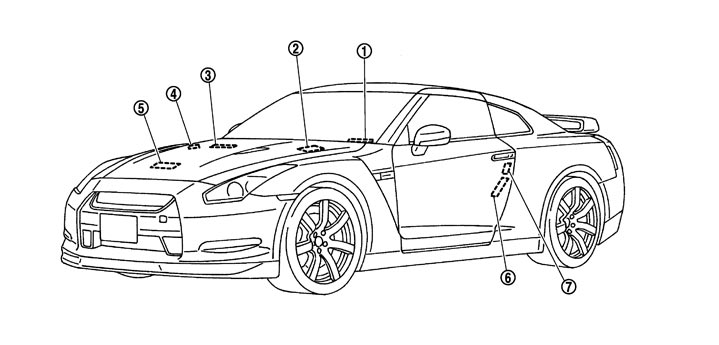

IDENTIFICATION NUMBER
|
1. |
Vehicle identification plate |
2. |
Emission control information label |
3. |
Vehicle identification number (Chassis number) |
|
4. |
Vehicle identification number plate |
5. |
Air conditioner specification label |
6. |
Tire and loading information label |
|
7. |
FMVSS certification label |
|
|
|
|

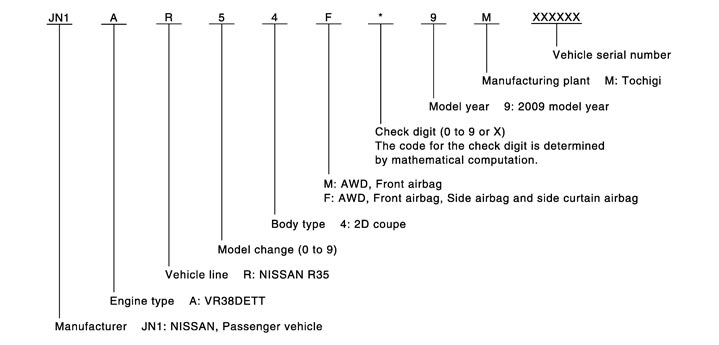

VEHICLE IDENTIFICATION NUMBER ARRANGEMENT
IDENTIFICATION PLATE
|
1. |
Type |
2. |
Vehicle identification number (Chassis number) |
3. |
Model variation code |
|
4. |
Body color code |
5. |
Trim color code |
6. |
Engine model |
|
7. |
Engine displacement |
8. |
Transmission model |
9. |
Axle model |

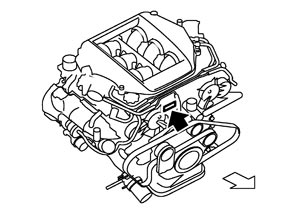

ENGINE SERIAL NUMBER
|
: Vehicle front |

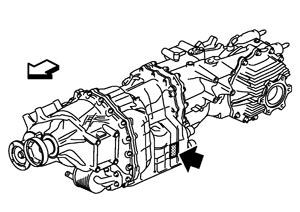

AUTOMATIC TRANSMISSION NUMBER |
|
: Vehicle front |
Dimensions
| Overall length | 4,650 (183.1) |
| Overall width | 1,902 (74.9) |
| Overall height | 1,372 (54.0) |
| Front tread | 1,590 (62.6) |
| Rear tread | 1,600 (63.0) |
| Wheelbase | 2,780 (109.4) |
Wheels & Tires
|
|
Conventional |
Spare |
|
|
Road wheel/offset mm (in) |
Front: 20 x 9‐1/2J Aluminum/45 (1.77) Rear: 20 x 10‐1/2J Aluminum/25 (0.98) |
— |
|
|
Tire size |
Summer |
Front: 255/40 ZRF20 97Y Rear: 285/35 ZRF20 100Y |
— |
|
All-season |
Front: 255/40RF20 97W Rear: 285/35 RF20 100W |
||
