LIFTING POINT

■ CAUTION ■

• Every time the vehicle is lifted up, maintain the complete vehicle curb condition.

• Since the vehicle's center of gravity changes when removing main parts on the front side (engine, suspension etc.), support a jack up point on the rear side garage jack with a mission jack or equivalent.

• Since the vehicle's center of gravity changes when removing main parts on the rear side (rear axle, transmission, suspension, etc.), support a jack up point on the front side garage jack with a mission jack or equivalent.

• Be careful not to smash or do not do anything that would affect piping parts.


■ WARNING ■

• Park the vehicle on a level surface when using the jack. Make sure to avoid damaging pipes, tubes, etc. under the vehicle.

• Never get under the vehicle while it is supported only by the jack. Always use safety stands when you have to get under the vehicle.

• Place wheel chocks at both front and back of the wheels on the ground.

• When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.

• When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, fuel lines and sill spoiler.

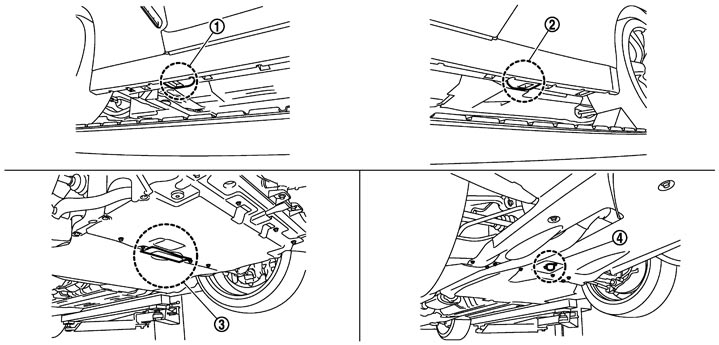

1.	Safety stand point and lift up point (front)	2.	Safety stand point and lift up point (rear)	3.	Garage jack point (front)
4.	Garage jack point (rear)

■ CAUTION ■

There is canister just behind Garage jack point rear. Jack up be carefully.

■ CAUTION ■

Make sure vehicle is empty when lifting.

• The board-on lift attachment (A) set at front end of vehicle should be set on the front of the jack point under the door opening.

• Position attachments at front and rear ends of board-on lift.





  : Vehicle front





• Be careful to use lift attachment (A) that has contact surface (b) for 90mm (3.5 in) or less. Always set lift attachment to the lift up point (3) center, so that it does not touch side sill (1) and under cover (2).
