TRUNK OPEN FUNCTION
INTELLIGENT KEY SYSTEM

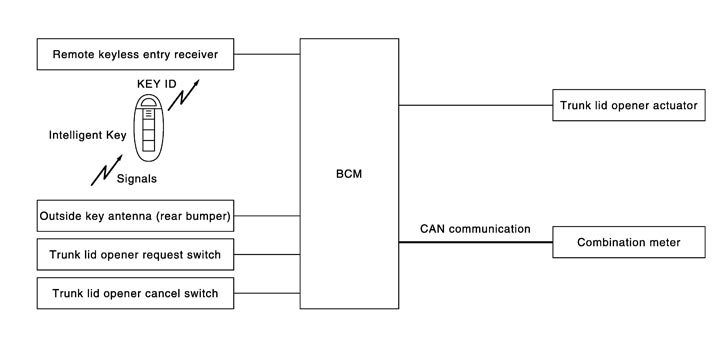

System Diagram
System Description
TRUNK LID OPENER- When the BCM detects that trunk lid opener request switch is pressed, it activates the outside key antenna (rear bumper) and inside key antenna and transmits the request signal to the Intelligent Key. And then, check that the Intelligent Key is near the trunk lid.
- If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and transmits the key ID signal to the BCM via remote keyless entry receiver.
- BCM receives the key ID signal and compares it with the registered key ID.
- BCM opens the trunk lid and sounds Intelligent Key warning buzzer and blinks hazard warning lamp at the same time as a reminder.
TRUNK LID OPENER OPERATIONWhen trunk lid opener switch is ON, BCM opens trunk opener actuator.
BCM can open trunk lid opener actuator when
- vehicle speed is less than 5 km/h (3 MPH)
- vehicle security system is disarmed or in the pre-armed phase
- Trunk lid opener cancel switch is OFF (CANCEL)
- vehicle speed is more than 5 km/h (3 MPH)
- vehicle security system is armed or in the alarm phase
OUTSIDE KEY ANTENNA DETECTION AREAThe outside key antenna detection area of trunk lid open function is in the range of approximately 80 cm (31.50 in) surrounding the trunk lid opener request switch (1). However, this operating range depends on the ambient conditions.
HAZARD AND BUZZER REMINDER FUNCTIONWhen trunk lid opening operation is performed by trunk lid opener request switch, the hazard warning lamps blink and Intelligent Key warning buzzer sounds as a reminder.
LIST OF OPERATION RELATED PARTSThe operation related parts are marked with ×.
| Door lock function | Intelligent Key | Key slot | Remote keyless entry receiver | Door switch | Door request switch | Door lock actuator | Inside key antenna | Outside key antenna (Rear bumper) | Intelligent Key warning buzzer | CAN communication system | BCM | Hazard warning lamp | Trunk lid opener request switch |
| Trunk lid opener function by trunk lid opener switch (Carrying Intelligent Key) | × | × | × | × | × | × | × | × | × | × | × | ||
| Hazard and buzzer reminder function for door lock/unlock operation | × | × | × | × |
Component Parts Location
|
1. |
BCM M118, M119, M120,M121, M122, M123 |
2. |
Remote keyless entry receiver M134 |
3. |
Inside key antenna (console) M146 |
|
4. |
Outside key antenna (rear bumper) B60 |
5. |
Inside key antenna (trunk room) B41 |
6. |
Outside handle LH (request switch) D13 |
|
7. |
Outside antenna (driver side) D24 |
8. |
Inside antenna (instrument center) M75 |
9. |
Intelligent key warning buzzer (engine room) E62 |
|
10. |
Trunk lid opener request switch B153 |
11. |
Trunk lid opener cancel switch M105 |
12. |
Combination meter M53 |
|
A. |
Dash side lower (passenger side). |
B. |
Behind display unit. |
C. |
Back of rear console assembly. |
|
D. |
Behind rear bumper. |
E. |
Behind trunk front finisher. |
F. |
Back of door finisher. |
|
G. |
Back of cluster kid C (lower). |
H. |
Behind air cleaner box (RH). |
|
|
|
1. |
Control device (detention switch) B20 |
2. |
Key slot M60 |
3. |
Trunk lid opener switch M20 |
|
4. |
Key warning lamp |
5. |
Trunk lid lock assembly (trunk lid opener actuator) B352 |
6. |
Fuel lid lock actuator B244 |
|
7. |
Driver side door lock actuator D15 |
8. |
Power window main switch (door lock and unlock switch) D8 |
9. |
Driver side door switch B21 |
|
10. |
Horn low E81,E82 |
11. |
Horn high E79,E80 |
|
|
|
A. |
View with center console assembly removed. |
B. |
View with trunk lid finisher removed. |
C. |
View with trunk side finisher removed. |
|
D. |
Behind front bumper |
|
|
|
|
Component Description
|
Item |
Function |
|
BCM |
Controls the trunk lid opener function and room lamp function. |
|
Door lock actuator |
Receives lock/unlock signal from BCM and locks/unlocks each door. |
|
Door switch |
Inputs door open/close condition to BCM. |
|
Remote keyless entry receiver |
Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM. |
|
Trunk lid opener request switch |
Inputs lock/unlock operation to BCM. |
|
Trunk lid opener cancel switch |
Cancels the trunk open operation. |
|
Intelligent Key |
Transmits button operation to remote keyless entry receiver. |
|
Outside key antenna (rear bumper) |
Detects if Intelligent Key is outside the vehicle. |
|
Inside key antenna |
Detects if Intelligent Key is inside the vehicle. |
|
Intelligent Key warning buzzer |
Warns the user of the trunk lid opener/close condition and inappropriate operations with the buzzer sound. |
|
Combination meter |
Transmits vehicle speed signal to BCM via CAN communication line. |
