Nissan GT-R (R35) · Service Manual BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

TRUNK OPEN FUNCTION

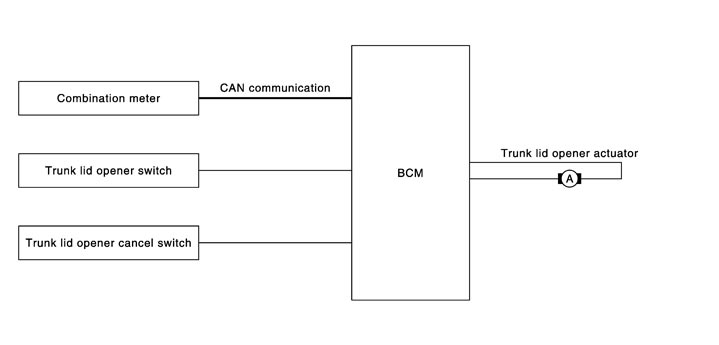

System Diagram



System Description


 TRUNK LID OPENER OPERATION

When trunk lid opener switch is ON, BCM opens trunk opener actuator.
BCM can open trunk lid opener actuator when
  • vehicle speed is less than 5 km/h (3 MPH)
  • vehicle security system is in the disarmed or pre-armed phase
BCM does not open trunk lid opener actuator when
  • Trunk lid opener cancel switch is OFF (CANCEL)
  • vehicle speed is more than 5 km/h (3 MPH)
  • vehicle security system is in the armed or alarm phase

Component Parts Location




1.
 		BCM M118, M119, M120,M121, M122, M123
 		2.
 		Remote keyless entry receiver M134
 		3.
 		Inside key antenna (console) M146
4.
 		Outside key antenna (rear bumper) B60
 		5.
 		Inside key antenna (trunk room) B41
 		6.
 		Outside handle LH (request switch) D13
7.
 		Outside antenna (driver side) D24
 		8.
 		Inside antenna (instrument center) M75
 		9.
 		Intelligent key warning buzzer (engine room) E62
10.
 		Trunk lid opener request switch B153
 		11.
 		Trunk lid opener cancel switch M105
 		12.
 		Combination meter M53
A.
 		Dash side lower (passenger side).
 		B.
 		Behind display unit.
 		C.
 		Back of rear console assembly.
D.
 		Behind rear bumper.
 		E.
 		Behind trunk front finisher.
 		F.
 		Back of door finisher.
G.
 		Back of cluster kid C (lower).
 		H.
 		Behind air cleaner box (RH).






1.
 		Control device (detention switch) B20
 		2.
 		Key slot M60
 		3.
 		Trunk lid opener switch M20
4.
 		Key warning lamp
 		5.
 		Trunk lid lock assembly (trunk lid opener actuator) B352
 		6.
 		Fuel lid lock actuator B244
7.
 		Driver side door lock actuator D15
 		8.
 		Power window main switch (door lock and unlock switch) D8
 		9.
 		Driver side door switch B21
10.
 		Horn low E81,E82
 		11.
 		Horn high E79,E80

A.
 		View with center console assembly removed.
 		B.
 		View with trunk lid finisher removed.
 		C.
 		View with trunk side finisher removed.
D.
 		Behind front bumper




Component Description


Item
 		Function
BCM
 		Controls trunk lid open operation.
Trunk lid opener switch
 		Transmits trunk open operation to BCM.
Trunk lid lock assembly (trunk lid opener actuator)
 		Opens the trunk with the open signal from BCM
Trunk lid opener cancel switch
 		Cancels the trunk open operation
