BCM (BODY CONTROL MODULE)

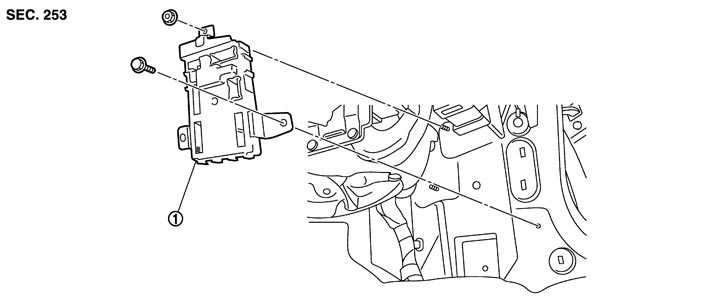

Exploded View
■ CAUTION ■
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specification. Refer to Description.
|
1. |
BCM |
|
|
|
|
Removal and Installation
■ CAUTION ■
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specification. Refer to Description.
REMOVAL- 1.Remove dash side finisher (passenger side). Refer to Exploded View.
- 2.Remove bolt and nut.
- 3.Remove BCM and disconnect the connector.
INSTALLATIONInstall in the reverse order of removal.
■ CAUTION ■
- Be sure to perform “WRITE CONFIGURATION” when replacing BCM.
- Be sure to perform the system initialization (NATS) when replacing BCM. Refer to Special Repair Requirement.
