BODY COMPONENT PARTS
Service Parts Supply Unit
For the service parts supply unit, pay special attention to the accuracy in the assembly status for parts that require high accuracy.
Therefore, never disassemble and cut parts other than for the purpose of the operations described in this manual.

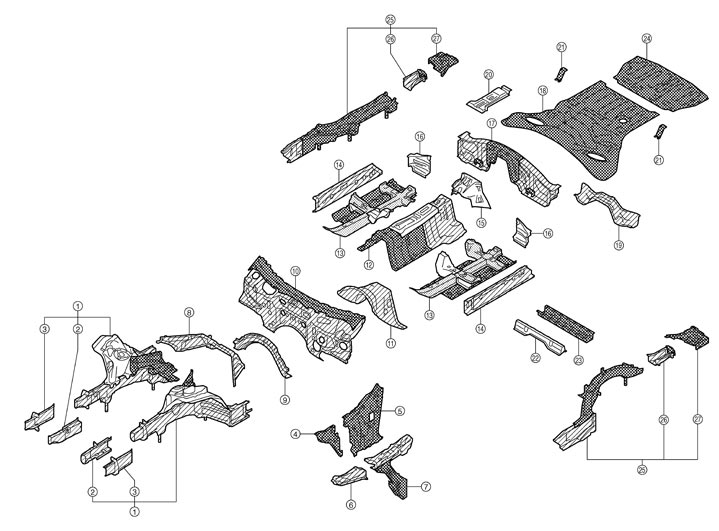

Underbody Component Parts
|
1. |
Front strut housing assembly with front side member (RH & LH) |
2. |
Front side member (RH & LH) |
3. |
Front side member closing plate (RH & LH) |
|
4. |
Upper front hoodledge (RH & LH) |
5. |
Upper rear hoodledge (RH & LH) |
6. |
Hoodledge extension (RH & LH) |
|
7. |
Hoodledge reinforcement (RH & LH) |
8. |
Front cowl top assembly |
9. |
Lower dash crossmember assembly |
|
10. |
Upper dash |
11. |
Lower dash |
12. |
Front floor center |
|
13. |
Front floor (RH & LH) |
14. |
Inner sill (RH & LH) |
15. |
Rear floor front extension |
|
16. |
Front floor rear gusset (RH & LH) |
17. |
Rear seat crossmember |
18. |
Rear floor front |
|
19. |
Rear floor seat belt anchor reinforcement |
20. |
Sensor mounting bracket assembly |
21. |
Bolt plate (RH & LH) |
|
22. |
2nd crossmember |
23. |
Rear crossmember center assembly |
24. |
Rear floor rear |
|
25. |
Rear side member assembly (RH & LH) |
26. |
Rear side member extension (RH & LH) |
27. |
Rear floor side (RH & LH) |
|
: Both sided anti-corrosive precoated steel sections |
||||
|
: High strength steel (HSS) sections |
||||
|
: Both sided anti-corrosive steel and HSS sections |
||||

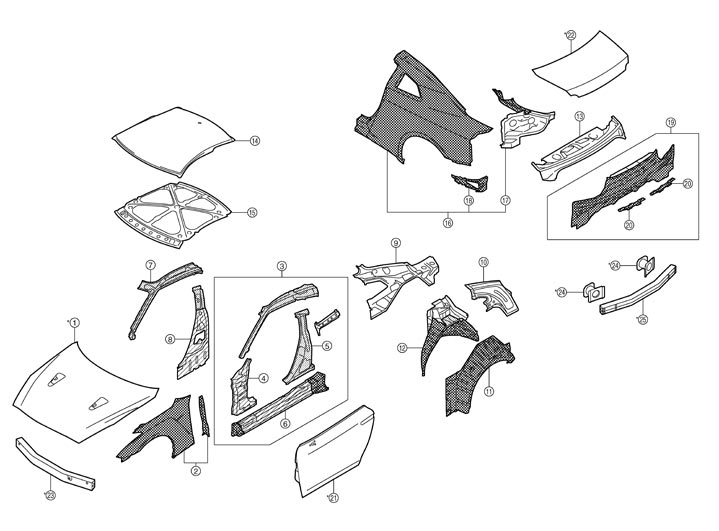

Body Component Parts
|
1. |
Hood |
2. |
Front fender (RH & LH) |
3. |
Side body assembly (RH & LH) |
|
4. |
Front pillar brace (RH & LH) |
5. |
Lock pillar reinforcement assembly (RH & LH) |
6. |
Outer sill reinforcement (RH & LH) |
|
7. |
Inner side roof rail (RH & LH) |
8. |
Inner lock pillar assembly (RH & LH) |
9. |
Inner rear pillar (RH & LH) |
|
10. |
Rear pillar reinforcement (RH & LH) |
11. |
Outer rear wheelhouse (RH & LH) |
12. |
Inner rear wheelhouse (RH & LH) |
|
13. |
Parcel shelf with rear waist |
14. |
Roof |
15. |
Inner roof |
|
16. |
Rear fender assembly (RH & LH) |
17. |
Tail pillar assembly (RH & LH) |
18. |
Rear fender extension (RH & LH) |
|
19. |
Rear panel assembly |
20. |
Rear bumper fascia bracket |
21. |
Front door (RH & LH) |
|
22. |
Trunk lid |
23. |
Front bumper armature assembly |
24. |
Rear bumper stay (RH & LH) |
|
25. |
Inner center rear bumper reinforcement assembly |
|
|
|
|
|
|
: Both sided anti-corrosive precoated steel sections |
||||
|
|
: High strength steel (HSS) sections |
||||
|
|
: Both sided anti-corrosive steel and HSS sections |
||||
|
* : Aluminum portion |
|
|
|
|
|
