A/C AUTO AMP.
AUTOMATIC AIR CONDITIONER
Exploded View
|
1. |
A/C auto amp. bracket RH |
2. |
A/C auto amp. |
3. |
A/C auto amp. bracket LH |
|
4. |
Instrument panel garnish LH |
5. |
Preset switch |
6. |
Instrument panel garnish RH |
|
7. |
Instrument panel garnish |
|
|
|
|
Removal and Installation

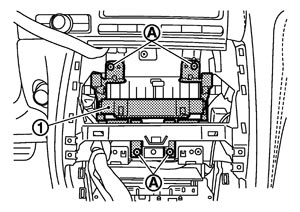

REMOVAL- 1.Remove preset switch. Refer to Exploded View (BASE AUDIO WITH NAVIGATION) or Exploded View (BOSE AUDIO WITH NAVIGATION).
- 2.Remove set-up switch assembly. Refer to Exploded View.
- 3.Remove cluster lid C (lower). Refer to Exploded View.
- 4.Remove mounting screws (A).
- 5.Disconnect A/C auto amp. harness connector, and then remove A/C auto amp. (1) together with A/C auto amp. bracket.

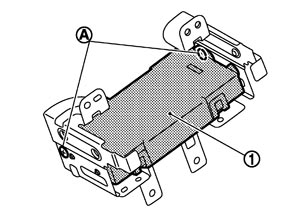

- 6.Remove mounting screws (A), and then remove A/C auto amp. bracket from A/C auto amp. (1).
INSTALLATIONInstallation is basically the reverse order of removal.
