Nissan GT-R (R35) · Service Manual VENTILATION, HEATER & AIR CONDITIONER

AIR MIX DOOR MOTOR

AUTOMATIC AIR CONDITIONER

Exploded View




1.
 		Heater & cooling unit assembly
 		2.
 		Air mix door motor (driver side)
 		3.
 		Air mix door motor adapter
4.
 		Air mix door motor adapter
 		5.
 		Air mix door motor (passenger side)
 		6.
 		Mode door motor
7.
 		Mode door motor bracket
 		8.
 		Main link
 		9.
 		Main link sub
10.
 		Defroster door link
 		11.
 		Max.cool door link
 		12.
 		Defroster door lever
13.
 		Max.cool door lever
 		14.
 		Ventilator door spring
 		15.
 		Ventilator door lever
16.
 		Foot door lever
 		17.
 		Foot door link
 		18.
 		Ventilator door link

Removal and Installation


 REMOVAL

 Driver Side

    1.Set the temperature (driver side) at 18.0°C (60°F).
    2.Disconnect the battery cable from the negative terminal.
    ■ CAUTION ■
    The angle may be out, when installing the air mix door actuator to the air mix door, unless the above 2 procedures are performed.
    3.Remove instrument lower panel (driver). Refer to Exploded View.

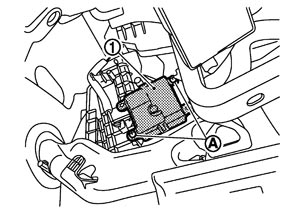

    4.Remove mounting screws (A), and then remove air mix door motor (driver side) (1).
    5.Disconnect air mix door motor (driver side) connector.

 Passenger Side

    1.Set the temperature (passenger side) at 18.0°C (60°F).
    2.Disconnect the battery cable from the negative terminal.
    ■ CAUTION ■
    The angle may be out, when installing the air mix door actuator to the air mix door, unless the above 2 procedures are performed.
    3.Remove instrument lower panel (assist). Refer to Exploded View.

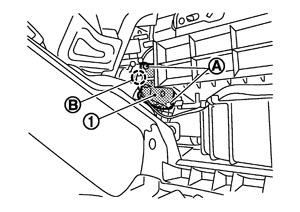

    4.Remove mounting screws (A), and then remove air mix door motor (passenger side) (1).
    5.Disconnect air mix door motor (passenger side) connector (B).

 INSTALLATION

Installation is basically the reverse order of removal.
