VEHICLE SECURITY SYSTEM



When one of the following operations is performed, the armed phase is canceled.

1.Unlock the all doors with the door request switch, Intelligent Key or door key cylinder.

2.Turn ignition switch “ON” or “ACC” position.

When unlocking the all doors with the door request switch, Intelligent Key or door key cylinder switch the alarm operation is canceled.

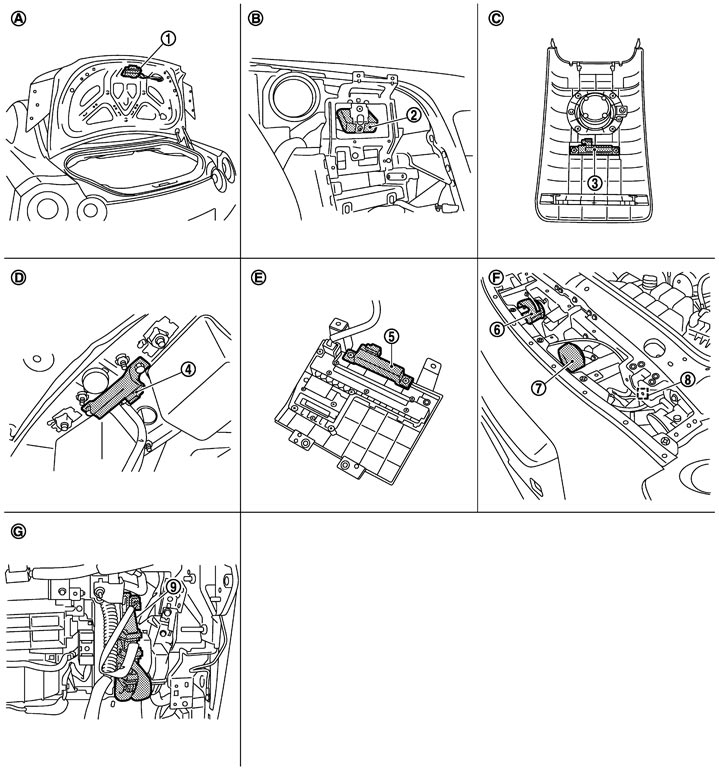

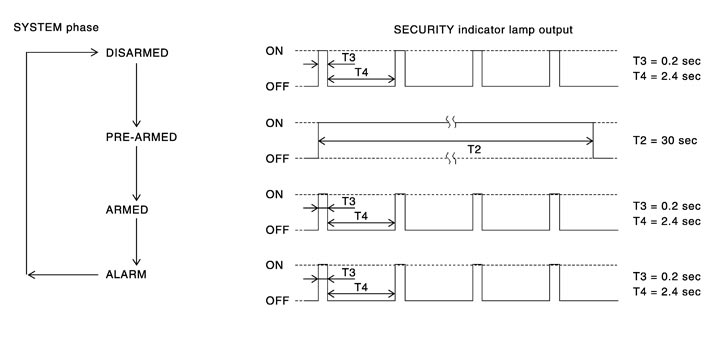

Check that the system is in the armed phase. (The security indicator lamp blinks every 2.4 seconds.)
When the following operation 1 or 2 is performed, the system sounds the horns and flashes the headlamps for about 50 seconds.

1.Back door or any door is opened during armed phase.

2.Disconnecting and connecting the battery connector before canceling armed phase.

Intelligent Key system may or may not operate vehicle security system (horn and headlamps) as required.

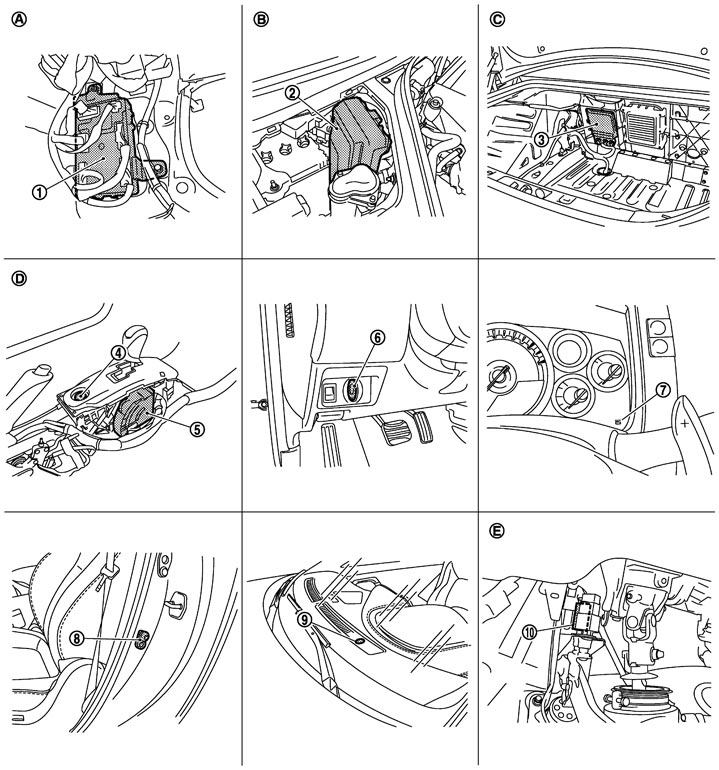

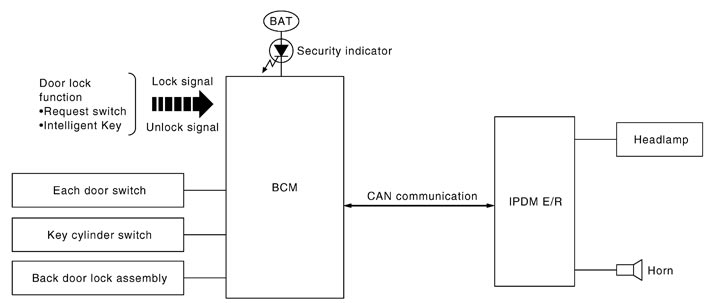

When the Intelligent Key system is triggered, ground is supplied intermittently to both headlamp relay and horn relay.
When headlamp relay and horn relay are energized, then power is supplied to headlamps (high beam and low beam) and horns (high, low and vehicle security horn).
The headlamps flash and the horn sounds intermittently.
The alarm automatically turns off after 50 seconds or when BCM receives any signal from Intelligent Key, door request switch or door key cylinder.
