FRONT DOOR SPEAKER
BASE AUDIO WITH NAVIGATION

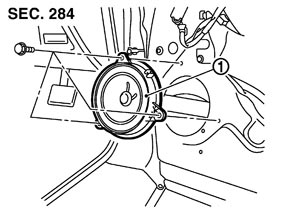

Exploded View
|
1. |
Front door speaker |
Removal and Installation
REMOVAL- 1.Remove the front door finisher. Refer to Removal and Installation.
- 2.Disconnect the connector and remove the screws, and remove the front door speaker.
INSTALLATIONInstall in the reverse order of removal.
