Nissan GT-R (R35) · Service Manual DRIVER INFORMATION & MULTIMEDIA

PRESET SWITCH

BASE AUDIO WITH NAVIGATION

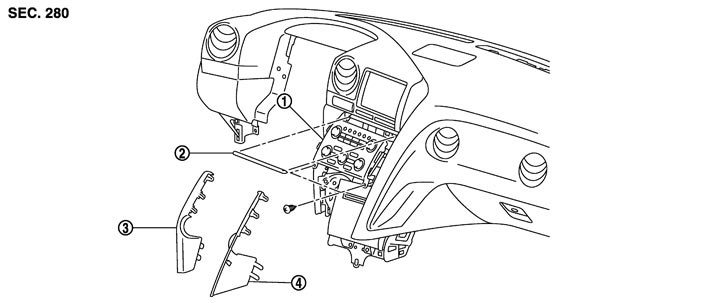

Exploded View


 REMOVAL

Refer to Exploded View.



1.
 		Preset switch
 		2.
 		Instrument panel garnish
 		3.
 		Instrument panel garnish LH
4.
 		Instrument panel garnish RH




Removal and Installation


 REMOVAL

    1.Remove the instrument panel garnish and the instrument panel garnish LH/RH. Refer to Removal and Installation.
    2.Remove the screws and disconnect the connector, and then remove the preset switch.

 INSTALLATION

Install in the reverse order of removal.
