Nissan GT-R (R35) · Service Manual DRIVER INFORMATION & MULTIMEDIA

GPS ANTENNA

BASE AUDIO WITH NAVIGATION

Exploded View

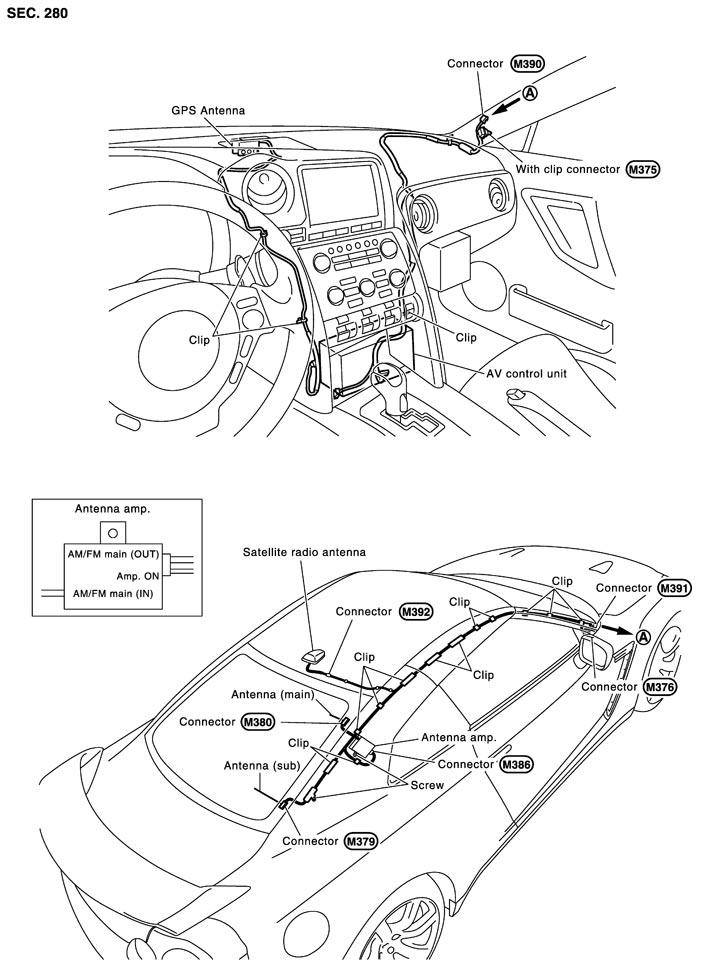

 Harness layout

Removal and Installation


 REMOVAL

    1.Remove the instrument panel assembly. Refer to Removal and Installation.

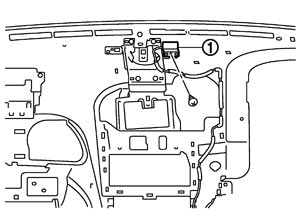

    2.Remove the screws, and then remove GPS antenna (1) from the instrument panel assembly.

 INSTALLATION

Install in the reverse order of removal.
