AUDIO AMP.
BASE AUDIO WITH NAVIGATION

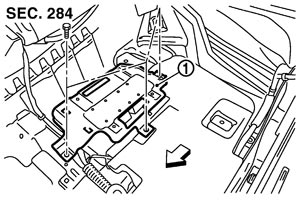

Exploded View
|
1. |
Audio amp. |
|
: Front of vehicle |
Removal and Installation
REMOVAL- 1.Remove the passenger seat. Refer to Removal and Installation.
- 2.Turn over the floor carpet (refer to Removal and Installation), remove the screw and disconnect the connector, and then remove the audio amplifier.
INSTALLATIONInstallation is the reverse order of removal.
