REAR SPEAKER
BASE AUDIO WITH NAVIGATION

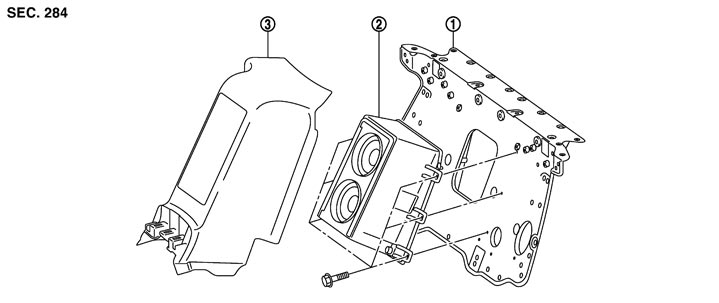

Exploded View
|
1. |
Rear seatback support |
2. |
Rear speaker |
3. |
Rear seat center finisher |
Removal and Installation
REMOVAL- 1.Remove the rear seat center finisher. Refer to Removal and Installation.
- 2.Remove the mounting screw and disconnect the connector, and then remove the rear speaker.
INSTALLATIONInstall in the reverse order of removal.
