Nissan GT-R (R35) · Service Manual TRANSMISSION & DRIVELINE

P2765 CLUTCH B SPEED SENSOR

TRANSMISSION: GR6Z30A

P2765

Description


  • The clutch B speed sensor detects the 1st counter gear speed. The clutch B speed sensor converts the 1st counter gear speed into pulse signal and transmits the signal to TCM.
  • TCM calculates the clutch B (a clutch for odd number gears and reverse) speed based on the signal from the clutch B speed sensor.

DTC Logic


 DTC DETECTION LOGIC

DTC
 		Self-diagnosis name
 		DTC detection condition
 		Possible cause
P2765
 		Clutch B speed pulse signal compatibility
 		A DTC is set if the status 1 or 2 below is detected with the sleeve B1 or B2 engaged in an odd number gear.
  1. The difference between the actual output shaft speed and the output shaft speed converted from the clutch B speed is 1,000 rpm or more.
  2. The difference between the vehicle speed signal (meter) (CAN signal) and the output shaft speed converted from the clutch B speed is 1,000 rpm or more.
  • Clutch B speed sensor
  • Harness or connector
    (Open or short in the clutch B speed sensor circuit)


 DTC CONFIRMATION PROCEDURE

■ CAUTION ■
 Be careful of the driving speed.

 1.PREPARATION BEFORE OPERATION

 2.PERFORM DTC CONFIRMATION PROCEDURE

Diagnosis Procedure



 1.CHECK GROUND CONNECTION

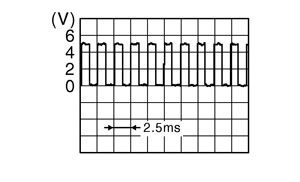

 2.CHECK TCM OUTPUT SIGNAL CIRCUIT

 3.CHECK TCM INPUT SIGNAL CIRCUIT

 4.CHECK INTERMITTENT INCIDENT

 5.CHECK HARNESS BETWEEN TCM AND TRANSMISSION (CLUTCH B SPEED SENSOR) (PART 1)

 6.CHECK HARNESS BETWEEN TCM AND TRANSMISSION (CLUTCH B SPEED SENSOR) (PART 2)

 7.CHECK INTERMITTENT INCIDENT
